emposonics® Sensor Technology - magnetostrictive!
All MTS linear, absolute position sensors and liquid level gauges are based on the magnetostrictive technology.
Inside the sensor a torsional strain pulse is induced in a specially designed magnetostrictive waveguide by the momentary interaction of two magnetic fields. One field comes from a moving magnet, which passes along the outside of the transducer tube, and the other field is generated from a current pulse which is applied to the waveguide. The interaction between these two magnetic fields produces a strain pulse which travels at sonic speed along the sensor waveguide, until the pulse is detected at the head of the transducer. The position of the moving magnet is precisely determined by measuring the elapsed time between the application of the current pulse and the arrival of the strain pulse.
As a result, accurate non contact position measurement with high repeatability and linearity is achieved with no wear to any of the sensor elements.
All MTS linear, absolute position sensors and liquid level gauges are based on the magnetostrictive technology.
Inside the sensor a torsional strain pulse is induced in a specially designed magnetostrictive waveguide by the momentary interaction of two magnetic fields. One field comes from a moving magnet, which passes along the outside of the transducer tube, and the other field is generated from a current pulse which is applied to the waveguide. The interaction between these two magnetic fields produces a strain pulse which travels at sonic speed along the sensor waveguide, until the pulse is detected at the head of the transducer. The position of the moving magnet is precisely determined by measuring the elapsed time between the application of the current pulse and the arrival of the strain pulse.
As a result, accurate non contact position measurement with high repeatability and linearity is achieved with no wear to any of the sensor elements.
主要产品
Temposonics® R-Series Position Sensors
Optimum performance for industrial applications – this is what the Temposonics R-Series position sensors offer. As a high end product, this sensor series is the racehorse of MTS. Powerful electronics and unrivalled immunity against interference are a warranty of the transducer's high-accuracy measurement results.
Product Selector Guide Industrial
Product Selector Guide Industrial (TR)
Product Selector Guide Industrial (PL)
Product Selector Guide Industrial (CN)
|
RP / RH Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Multi-Position |
|
|---|---|---|---|---|---|
|
|
|||||
|
Powerlink |
50 - 7600 |
1 µm |
max. 4 Positions |
|
|
|
EtherNet/IP |
25 - 7620 |
1 µm |
max. 20 Positions |
|
|
|
Profinet |
25 - 7600 |
1 µm |
max. 19 Positions |
|
|
|
EtherCAT |
25 - 7600 |
1 µm |
max. 20 Positions |
|
|
|
SSI |
25 - 7600 |
0,5 µm |
- |
|
|
|
CANbus |
25 - 7600 |
2 µm |
max. 20 Positions |
|
|
|
Profibus-DP |
25 - 7600 |
2 µm |
max. 20 Positions |
|
|
|
Analog |
50 - 7600 |
16 Bit, 1 µm |
max. 2 Positions |
|
|
|
DeviceNet |
25 - 7600 |
5 µm |
- |
|
|
RP/RH Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Multi-Position |
|
|---|---|---|---|---|---|
|
Language |
|
|
|
|
|
|
Russian |
Analog |
50 - 7600 |
16 Bit, 1 µm |
max. 2 Positions |
|
|
Russian |
SSI |
25 - 7600 |
0,5 µm |
- |
|
|
RF Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Multi-Position |
|
|---|---|---|---|---|---|
|
|
Analog |
100 - 20000 |
16 Bit, 1 µm |
- |
|
|
SSI |
100 - 20000 |
0,5 µm |
- |
|
|
|
CANbus |
100 - 20000 |
2 µm |
max. 20 Positions |
|
|
|
Profibus-DP |
100 - 20000 |
1 µm |
max. 20 Positions |
|
|
|
EtherCAT |
100 - 20000 |
1 µm |
max. 20 Positions |
|
|
|
Ethernet/IP™ |
100 - 20000 |
1 µm |
max. 20 Positions |
|
|
|
Powerlink |
100 - 20000 |
1 µm |
max. 4 Positions |
|
|
|
Profinet |
100 - 20000 |
1 µm |
max. 19 Positions |
|
|
RT4 Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Multi-Position |
|
|---|---|---|---|---|---|
|
|
SSI |
25 - 2540 |
1 µm |
- |
|
|
RD4 Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Multi-Position |
|
|---|---|---|---|---|---|
|
|
Analog |
25 - 5000 |
16 Bit, 1 µm |
- |
|
|
SSI |
25 - 5000 |
0,5 µm |
- |
|
|
|
CANbus |
25 - 5000 |
2 µm |
max. 20 Positions |
|
|
|
Profibus-DP |
25 - 5000 |
1 µm |
max. 30 Positions |
|
|
|
EtherCAT |
25 - 5000 |
1 µm |
max. 20 Positions |
|
|
RS IP68 / IP69K |
Output |
Stroke Length (mm) |
Resolution |
Multi-Position |
|
|---|---|---|---|---|---|
|
|
Analog |
50 - 7600 |
16 Bit, 1 µm |
- |
|
|
SSI |
50 - 7600 |
0,5 µm |
- |
|
|
|
CANbus |
50 - 7600 |
2 µm |
max. 20 Positions |
|
|
|
Profibus-DP |
50 - 7600 |
1 µm |
max. 30 Positions |
|
|
|
EtherCAT |
50 - 7600 |
1 µm |
max. 20 Positions |
产品型号
Temposonics® MH-Series Position Sensors
Integrated in the hydraulic cylinder, the compact Temposonics position sensors for mobile off-road agricultural and construction machinery measure displacement and velocity safely even in an extremely harsh environment.
Product Overview Mobile Hydraulic Sensors|
MH5 Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
MH Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
Standard in Mobile Hydraulics |
CANopen |
50 - 2500 |
0.1 mm |
48 mm |
|
|
PWM |
50 - 2500 |
0.1 mm |
48 mm |
|
|
MH200 Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
|
CANopen |
|
|
|
|
|
MH Safety (SIL 2) Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
|
CANopen |
|
|
|
|
|
MS Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
Compact Design |
Analog+Digital |
50 - 2500 (analog) 50 - 1500 (digital) |
0.1 mm |
28 mm |
|
|
MT Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
Twice redundant |
Analog |
50 - 2500 |
0.1 mm |
48 mm |
|
|
MB Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing-Ø |
|
|---|---|---|---|---|---|
|
Compact Sensor for Mobile Hydraulics |
Analog
|
75 - 250 |
continuous analog output signal |
HEX27 |
|
|
MXR Position Sensor |
Output |
Stroke Length (mm) |
Resolution |
Housing |
|
|---|---|---|---|---|---|
|
For external mounting |
Analog
|
100 - 600 |
0.1 mm |
External |
|
|

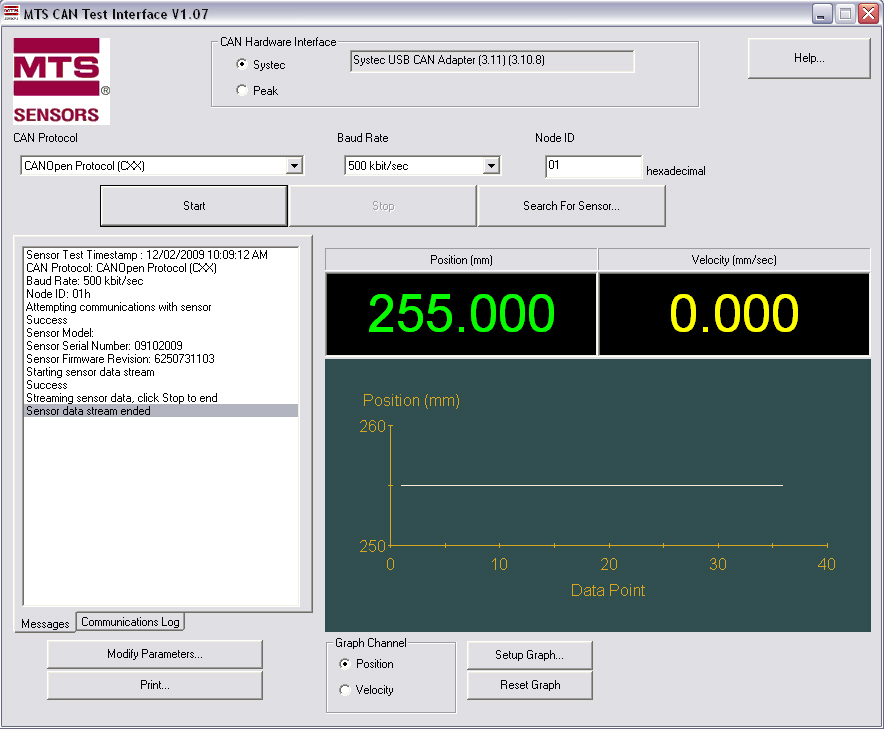

MH-Series Test Software |
Features |
|
|---|---|---|
|
for MH-Series: • CANopen • CANopen Safety • SAE J1939
|
Software to provide direct feedback from M-Series digital sensors
User's Manual |
|
|
MH-Series Testkit (analog / PWM) |
Beschreibung |
|
|---|---|---|
|
for MH-Series: • analog
• PWM
|
Testkit to provide direct feedback from M-Series digital sensors
User's Manual |
