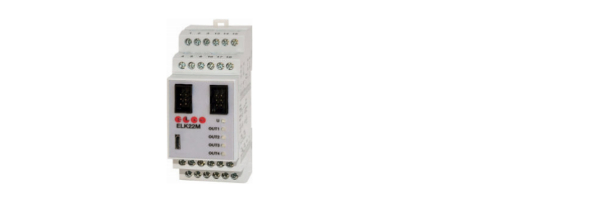

ELK22 MS系列温控器    订购编号:

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

ELK22 MS SERIES


- Power supply: 24 VAC/VDC, 100...240 VAC +/-10%
- Power consumption: 6 VA approx
- AC Frequency: 50 / 60 Hz
- Universal input: Thermocouples J, K, S - Thermoresistors Pt100 2/3 wires
  Thermoresistors PTC KTY81-121 - NTC 103AT-2 - Linear signals 0/10 V - 0/4-20 mA
- Normalized signals inputimpedance: For input 0/4-20 mA: 51 Ω - For mV and V input: 1 M Ω
- Relay: Up to 2 outputs: 2 outputs SPDT (6A AC1 / 250 VAC)
- Relay electric life: Up to 2 outputs, 20 mA / 10 VDC with short circuit protection
- Auxiliary power supply output: 16 VDC / 20 mA max. only for instruments with 12 VAC/DC as power supply (OUT 5)
- Control: ON/OFF, PID single action
- Overall accuracy: +/-0.5% full scale
- Display resolution: According to the used probe 1/0.1/
- Other tecnical features: see document attached

 Technical data (PDF Format)
 Accessories for ELK 22 MS

 Models
 ELK 22 MS
