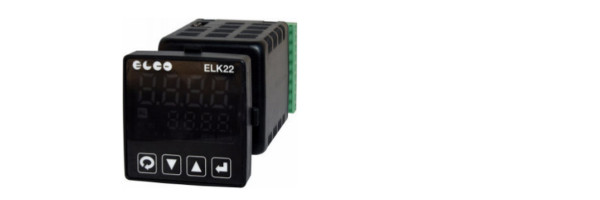

| ELK 22 S SERIES |
 |
|
- power supply: 24 VAC/VDC, 100...240 VAC +/-10% - power consumption: 8 VA approx - AC Frequency: 50 / 60 Hz - universal input: Thermocouples J, K, S - Thermoresistors Pt100 2/3 wires / Thermoresistors PTC KTY81-121 - NTC 103AT-2 - relay: Up to 2 outputs: 1 output SPDT and 1 output SPST-NO (6A AC1 / 250 VAC) - relay electric life: 100000 operations - control voltage for SSR: Up to 2 outputs, 20 mA / 10 VDC with short circuit protection - control: ON/OFF, Neutral Zone, PID single action - overall accuracy: According to the used probe 1/0.1/ - measurement range: According to the used probe and to the measurement unit - other tecnical features: see document attached |
| Technical data (PDF Format) |
| Models |
| ELK 22 S |
