Handyscope HS6 DIFF the USB oscilloscope packed with technology The new 1 GS/s 14 bit quad differential channel High Resolution Oscilloscope.
This powerful USB 3.0 super speed oscilloscope combines fast sampling up to 1 GS/s with high resolutions of 12, 14 and 16 bit and a large memory of 64 MSamples on all four channels. The oscilloscope supports continuous streaming measurements up to 200 MS/s and can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the Handyscope HS6 DIFF. Optionally, the Handyscope HS6 DIFF can be delivered with SureConnect connection test and resistance measurement on each channel. Also, the Handyscope HS6 DIFF can be delivered with SafeGround option. With SafeGround you can switch the differential inputs of the Handyscope HS6 DIFF into single ended inputs with ground protection. It allows to make measurements using standard attenuating probes and protects the scope when a short circuit to ground is created.
Handyscope HS6 DIFF key specifications
This best in class High Resolution USB oscilloscope gives the best specifications available in the industry, for a limited budget. The flexibility and quality that the Handyscope HS6 DIFF offers is unparalleled by any other oscilloscope in its class.
Key specifications:
| Oscilloscope / Spectrum analyzer / Multimeter / Data logger |
|---|
| 14 bit (0.006 %) resolution (16 bit enhanced resolution) |
| Up to 1 GS/s sampling |
| 250 MHz bandwidth |
| Up to 200 MS/s continuous streaming |
| Up to 256 MSamples memory per channel |
| 0.25 % DC vertical accuracy, 0.1 % typical |
| 1 ppm time base accuracy |
The Handyscope HS6 DIFF can be synchronized with other oscilloscopes using the CMI interface to form a multi channel combined instrument with synchronized time base. The CMI interface is available by default on the Handyscope HS6 DIFF.
Optionally available: SafeGround: switch your differential inputs to single ended inputs, to use attenuating oscilloscope probes, with real time ground current protection on all channels.
Optionally available: SureConnect connection test: real time probe connection verification while measuring and fast and accurate resistance measurement on all channels.
Models
The Handyscope HS6 DIFF is available in 5 different base models:
| Order code | Max. sampling speed | Max. streaming speed |
|---|---|---|
| HS6-DIFF-1000 | 1 GS/s | 200 MS/s |
| HS6-DIFF-500 | 500 MS/s | 100 MS/s |
| HS6-DIFF-200 | 200 MS/s | 40 MS/s |
| HS6-DIFF-100 | 100 MS/s | 20 MS/s |
| HS6-DIFF-50 | 50 MS/s | 10 MS/s |
Available options for the Handyscope HS6 DIFF are:
- XM: With the extended memory option, up to 256 MSamples memory per channel is available. Without this option, the models have up to 1 MSamples memory per channel.
- S: With the SureConnect option, connection test and resistance measurement are available on all channels.
- G: with the SafeGround option, the differential inputs can be switched to single ended inputs, with a protection against shorts circuits to ground.
- W5: With the extended warranty option, warranty is five years on parts and labor. Without this option, the models have three years warranty on parts and labor.
Package contents
The Handyscope HS6 DIFF models come with the following items:
| Amount | Item |
|---|---|
| 1 | Carry case BB391 |
| 1 | Handyscope HS6 DIFF |
| 4 | Measure lead TP-C812B |
| 4 | Differential attenuator TP-DA10 |
| 1 | Alligator Clip TP-AC80I - Set (8 clips: 4 black, 1 green, 1 blue, 1 yellow, 1 red) |
| 1 | Alligator Clip TP-AC10I - Set (8 clips: 4 black, 1 green, 1 blue, 1 yellow, 1 red) |
| 1 | Alligator Clip TP-AC5 - Set (8 clips: 4 black, 1 green, 1 blue, 1 yellow, 1 red) |
| 1 | Handyscope power supply |
| 1 | Probe compensation cable TP-DB9-BNC-30 (only in combination with option G SafeGround) |
| 1 | External power cable (USB) |
| 1 | CD-ROM with Multi Channel oscilloscope software and drivers |
| 1 | Instrument manual |
| 1 | Software manual |
Handyscope HS6 DIFF features
- SafeGround
- SureConnect
- Combining multiple Handyscope HS6 DIFFs
- High accuracy
- Large memory
- Bandwidth limit
- Many instruments
Differential / single ended switchable inputs with SafeGround protection
SafeGround gives the possibility to use the oscilloscope inputs both as single ended and as differential. When SafeGround is active and you accidentally create a wrong connection that causes a short circuit, SafeGround will disconnect the ground of the input channel without damaging the oscilloscope or PC. You can therefore simply switch from a differential input to a single ended input without worrying if anything will damage because of a short circuit current1. The Handyscope HS6 DIFF is the only oscilloscope in the world with this unique SafeGround protection. And as you all know, a connection mistake is easily made, which will now have no more strange and financial consequences because of SafeGround as the short circuit current is limited thanks to SafeGround.
Background: The advantage of an oscilloscope with differential inputs is that there are no connections between the channels and with the ground of the computer. It is therefore not possible to create a short circuit. With SafeGround enabled you can connect a standard 1:10 probe to your channel, this is not possible with a standard differential channel of other oscilloscope manufacturers. Sometimes it is also required to perform a single ended measurement, but then there is a risk of a short circuit.
When you do want to measure with a single ended input, your input is connected to the ground of your oscilloscope and your computer (the alligator clip of your probe is directly connected to ground). The input channels are also connected to each other. When you connect the alligator clip of your probe accidentally to a point in your test subject that is not at ground level but to a point with an elevated voltage, a short circuit current will flow through your probe, oscilloscope and computer. This can cause serious damage to the test subject, the scope and the computer. SafeGround avoids this and safes you a lot of misery. SafeGround can be enabled individually for each channel of the Handyscope HS6 DIFF.

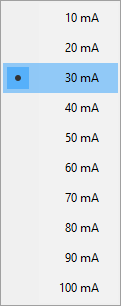

The ground current at which the SafeGround protection activates and shuts off the ground connection is adjustable in steps of 10 mA. This allows to use single ended inputs in a situation where the instrument and the device under test do not have the exact same ground level, e.g. due to voltage drop over a ground connection. The small current that then will flow could activate SafeGround. Setting the current limit to a higher value may keep SafeGround from being activated.
When your device under test is very sensitive to damage, the SafeGround current limit can be set to a lower value, to give the highest level of protection.
SafeGround protects your scope, your computer and your circuit under test against accidental wrong ground connections.
SafeGround properties:
- Low switch off current
- High speed switching
- High voltage protection
- SafeGround on each channel
SureConnect connection test on each channel
While measuring, the revolutionary SureConnect connection test feature of the Handyscope HS6 DIFF checks in real time whether your test probe or clip actually makes electrical contact with your test subject.

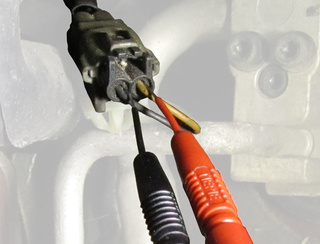

Assuring a good connection of a probe with a test subject may not always be easy. The subject under measurement may be dirty, oxidized or an (invisible) protective layer may be present. Or, the test subject may be hidden, making visible contact confirmation impossible. Also, capacitive coupling between test probe and test subject can result in measuring a distorted version of the actual signal, wrongly suggesting a connection. Simply activate the SureConnect connection test and you know whether there is contact or not.
SureConnect: no more doubt whether your probe doesn’t make contact or there really is no signal.
As can be seen in the following video, capacitive coupling between test probe and test subject can result in measuring a distorted version of the actual signal, wrongly suggesting a connection. SureConnect however immediately shows you whether a good connection is present.
SureConnect is optionally available on the Handyscope HS6 DIFF.
Combining multiple Handyscope HS6 DIFFs for fully synchronized measuring

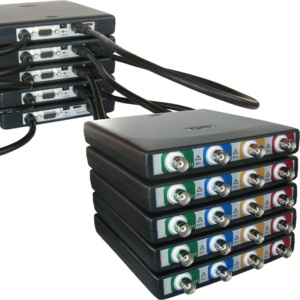

The Handyscope HS6 DIFF is equipped with a sophisticated CMI synchronization bus, allowing to connect multiple Handyscope HS6 DIFFs to each other by means of coupling cables, to use them as a combined instrument. All instruments will measure at the same sample frequency (0 ppm deviation!). Apart from a synchronization bus, the CMI also contains a trigger bus and a detection bus. The maximum number of instruments is only limited by the number available USB ports.
Combining the instruments is fully automatic. When the Multi Channel oscilloscope software is started, the Handyscope HS6 DIFFs coupled with TP-C50H Coupling cables are identified and automatically combined to a larger instrument. Both the synchronization bus and trigger bus are automatically terminated at both ends with the correct impedance, so there is no need to manually place terminators. This unique possibility to create e.g. an 20 channel instrument is only available with the Handyscope HS6 DIFF and Handyscope HS5 and no other USB oscilloscope.
The video below shows how to combine and synchronize multiple oscilloscopes using the unique TiePie engineering Combine Multiple Instruments interface, where all channels are sampled using the same clock, with 0 ppm clock error, and shown together in one graph.
High amplitude resolution, 256 times more than a standard oscilloscope
The Handyscope HS6 DIFF measures with high resolutions of 14 and 16 bit. A signal measured with the Handyscope HS6 DIFF therefore has 256 times more resolution than most standalone oscilloscopes, which usually have a low resolution of 8 or 9 bit. The high resolution of the Handyscope HS6 DIFF precision oscilloscope allows for measuring signals with more accuracy, because the quantization error is much lower.
The input circuit of the Handyscope HS6 DIFF has a high accuracy of 0.25 % of the full scale input range, where most standalone oscilloscopes have an accuracy of 2 - 3 % of the full scale range.
To display a signal measured with the Handyscope HS6 DIFF High Resolution oscilloscope at the same level of detail as the standalone oscilloscope, the display can be 256 times larger. Viewing the signals on a 24" monitor immediately gives a very detailed impression of the signal. The smallest deviations are very well visible and because of the high resolution, it is still possible to zoom in and reveal additional details.

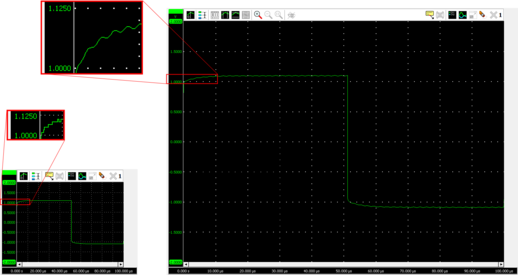

Figure 1: Handyscope HS6 high visible accuracy compared to competition.
Shown in figure 1 are two displays, both showing a measurement of the same signal. The left display size corresponds to a size comparable to a standalone oscilloscope; at 8 bit resolution, zooming will not reveal more details. The right display corresponds to a maximized window on a standard PC screen; at 14 bit resolution, zooming will still reveal more details.
The high resolution and high accuracy of the Handyscope HS6 DIFF and the unlimited zoom of the Multi Channel oscilloscope software allow to zoom in to mV levels. Figure 2 shows a measurement of a 2 mV sine wave made in the 200 mV input range, which is then zoomed in to view the signal at an 8 mV scale.

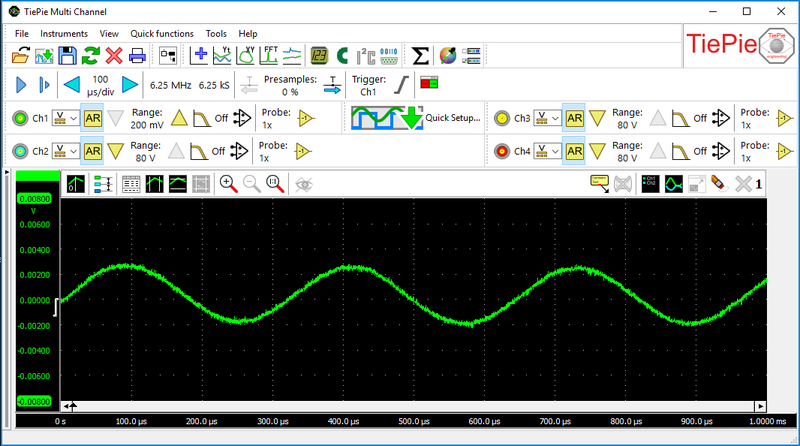

Figure 2: Zoomed in to get an 8 mV input scale.
Highly accurate 1 ppm oscilloscope time base
With a time base accuracy of 1 ppm, frequency and timing can be measured very accurately. The time base of the Handyscope HS6 DIFF is 25 to 100 times more accurate than comparable instruments of the competition.
Coupling multiple instruments to a large combined instrument does not affect the time base accuracy. The timing deviation between the coupled instruments is 0 ppm.
Mega deep memory of up to 256 MSamples per channel
When measuring at high sample rates, a long record length/large memory is necessary to be able to record a complete signal in the acquisition buffer. Where most oscilloscopes have 2.5 kSamples or 100 kSamples memory, the Handyscope HS6 DIFF has up to 256 MSamples memory per channel, depending on the selected resolution and the number of active channels. When measuring at 14 bit resolution and all four channels, the available memory is 32 MSamples per channel. This gives the user 300 to 100000 times more memory. An advantage of a large memory is that once-only fast phenomena can be captured accurately or complete serial communication signal blocks can be measured all at once. For example complete serial communications, like CAN bus signals, can be measured all in one record to be reviewed and analyzed afterwards.
The large memory results in the advantage of a large dynamic range in the USB spectrum analyzer, which enables troubleshooting in the frequency domain.
The unlimited super zoom feature of the Handyscope HS6 DIFF allows to zoom in to individual samples, no matter what record length is used.

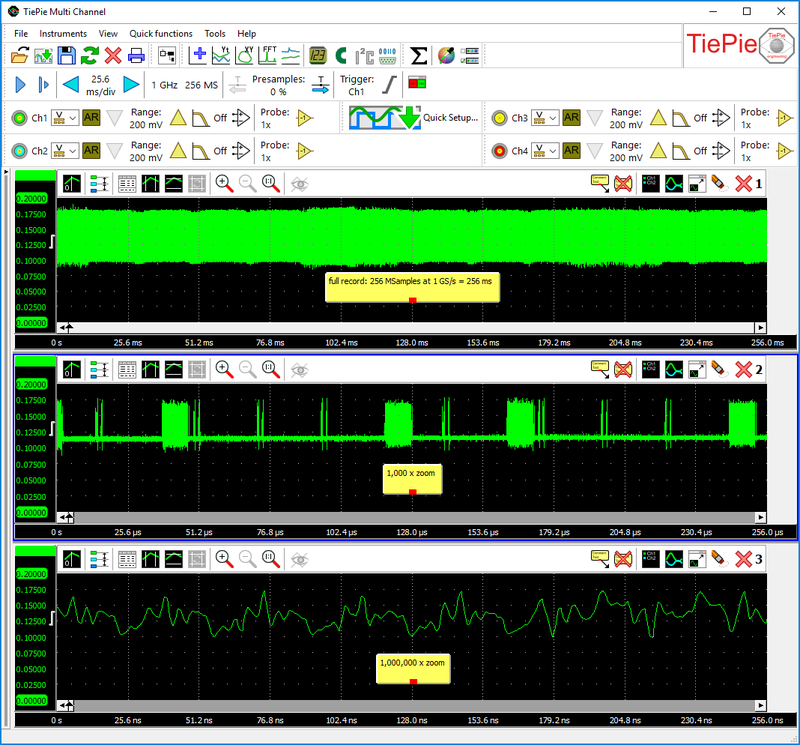

Figure 1: The same signal viewed simultaneously with several zoom factors up to 1,000,000
Figure 1 shows the same signal three times with different zooming factors. The lowest graph shows just 256 ns of the total 256 ms, a zoom factor of 1 million and still provides enough detail for accurate signal analysis.
Record lengths larger than 32 MSamples are only available in the 64 bit version of the Multi Channel oscilloscope software.
Switchable hardware-based bandwidth limiter
It seems reasonable to assume that more bandwidth is better, but a wider bandwidth gives more noise. To reduce your noise you can switch a bandwidth limiter on. When a lot of noise appears on your signal and triggering becomes unstable, switching the bandwidth limit on will give a stable triggering. Enabling the bandwidth limiter also avoids under sampling.

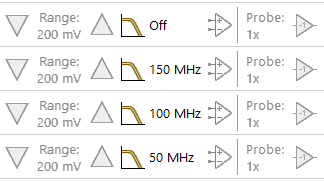

The bandwidth limit can be enabled for each channel individually on the channel toolbar and has four settings. The frequencies of the bandwidth limiter depend on the Handyscope HS6 DIFF model:
| HS6 DIFF-1000 | HS6 DIFF-500 | HS6 DIFF-200 | HS6 DIFF-100 | HS6 DIFF-50 |
|---|---|---|---|---|
| Off (250 MHz) | Off (250 MHz) | Off (250 MHz) | Off (100 MHz) | Off (100 MHz) |
| 150 MHz | 150 MHz | 150 MHz | 75 MHz | 75 MHz |
| 100 MHz | 100 MHz | 100 MHz | 50 MHz | 50 MHz |
| 50 MHz | 50 MHz | 50 MHz | 25 MHz | 25 MHz |
Many instruments in one device
-
Oscilloscope -
Multimeter -
Spectrum analyzer -
Data logger
With the Multi Channel oscilloscope software, the world's most sophisticated measuring software, the Handyscope HS6 DIFF can be used as: High Resolution USB Oscilloscope, multimeter, spectrum analyzer, data logger/transient recorder and protocol analyzer. This powerful and compact measuring instrument can solve almost any measurement problem.
Handyscope HS6 DIFF specifications
The tables below show detailed specifications of the Handyscope HS6 DIFF. Jump to acquisition specifications, trigger specifications or general specifications.
| Acquisition system | |||||
|---|---|---|---|---|---|
| Number of input channels | 4 analog | ||||
| CH1, CH2, CH3, CH4 | Isolated male BNC | ||||
| Type | Differential input | ||||
| Resolution | 8, 12, 14, 16 bit user selectable | ||||
| DC Accuracy |
0.25 % (0.1 % typical) of full scale ± 1 LSB at 20°C to 25°C To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize. |
||||
| Ranges | ±200 mV to ±80 V full scale | ||||
| Coupling | AC/DC | ||||
| Impedance |
2 MOhm / 12 pF ± 1 % 1 MOhm / 20 pF ± 1 % when SafeGround enabled |
||||
| Maximum voltage | 200 V (DC + AC peak < 10 kHz) | ||||
| Maximum Common Mode voltage |
200 mV to 800 mV ranges : 2 V 2 V to 8 V ranges : 20 V 20 V to 80 V ranges : 200 V |
||||
| Common Mode Rejection Ratio | -47 dB | ||||
| Bandwidth | HS6D-1000 | HS6D-500 | HS6D-200 | HS6D-100 | HS6D-50 |
| -3dB at 75 % of full scale input | 250 MHz | 250 MHz | 250 MHz | 100 MHz | 100 MHz |
| Limit, selectable per channel |
Off (250 MHz) 150 MHz 100 MHz 50 MHz |
Off (250 MHz) 150 MHz 100 MHz 50 MHz |
Off (250 MHz) 150 MHz 100 MHz 50 MHz |
Off (100 MHz) 75 MHz 50 MHz 25 MHz |
Off (100 MHz) 75 MHz 50 MHz 25 MHz |
| AC coupling cut off frequency (-3dB) | ±1.5 Hz | ||||
| SureConnect | Optionally available (option S) | ||||
| Maximum voltage on connection | 200 V (DC + AC peak < 10 kHz) | ||||
| Resistance measurement | Optionally available (option S) | ||||
| Ranges | 100 Ohm to 2 MOhm full scale in 1-2-5 sequence | ||||
| Accuracy | 1 % of full scale | ||||
| Response time (to 95%) | < 10 µs | ||||
| SafeGround | Optionally available (option G) | ||||
| Maximum voltage on connection | 200 V (DC + AC peak < 10 kHz) | ||||
| Maximum switch off current | 500 mA | ||||
| Response time | < 100 ns | ||||
| Maximum sampling rate | HS6D-1000 | HS6D-500 | HS6D-200 | HS6D-100 | HS6D-50 |
| 8 bit | |||||
| measuring one channel | 1 GS/s | 500 MS/s | 200 MS/s | 100 MS/s | 50 MS/s |
| measuring two channels | 500 MS/s | 200 MS/s | 100 MS/s | 50 MS/s | 20 MS/s |
| measuring three or four channels | 200 MS/s | 100 MS/s | 50 MS/s | 20 MS/s | 10 MS/s |
| 12 bit | |||||
| measuring one channel | 500 MS/s | 200 MS/s | 100 MS/s | 50 MS/s | 20 MS/s |
| measuring two channels | 200 MS/s | 100 MS/s | 50 MS/s | 20 MS/s | 10 MS/s |
| measuring three or four channels | 100 MS/s | 50 MS/s | 20 MS/s | 10 MS/s | 5 MS/s |
| 14 bit | 100 MS/s | 50 MS/s | 20 MS/s | 10 MS/s | 5 MS/s |
| 16 bit | 6.25 MS/s | 3.125 MS/s | 1.25 MS/s | 625 kS/s | 312.5 kS/s |
| Maximum streaming rate 1 | HS6D-1000 | HS6D-500 | HS6D-200 | HS6D-100 | HS6D-50 |
| 8 bit | |||||
| measuring one channel | 200 MS/s 2 | 100 MS/s 2 | 40 MS/s | 20 MS/s | 10 MS/s |
| measuring two channels | 200 MS/s 3 | 50 MS/s 3 | 20 MS/s | 10 MS/s | 5 MS/s |
| measuring three or four channels | 100 MS/s 4 | 25 MS/s 4 | 10 MS/s | 5 MS/s | 2.5 MS/s |
| 12 bit | |||||
| measuring one channel | 200 MS/s 3 | 50 MS/s 3 | 20 MS/s | 10 MS/s | 5 MS/s |
| measuring two channels | 100 MS/s 4 | 25 MS/s 4 | 10 MS/s | 5 MS/s | 2.5 MS/s |
| measuring three or four channels | 50 MS/s 5 | 12.5 MS/s 5 | 5 MS/s | 2.5 MS/s | 1.25 MS/s |
| 14 bit | |||||
| measuring one channel | 100 MS/s 3 | 50 MS/s 3 | 20 MS/s | 10 MS/s | 5 MS/s |
| measuring two channels | 50 MS/s 4 | 25 MS/s 4 | 10 MS/s | 5 MS/s | 2.5 MS/s |
| measuring three or four channels | 25 MS/s 5 | 12.5 MS/s 5 | 5 MS/s | 2.5 MS/s | 1.25 MS/s |
| 16 bit | 6.25 MS/s 6 | 3.125 MS/s | 1.25 MS/s | 625 kS/s | 312.5 kS/s |
| Sampling clock source | |||||
| Internal | TCXO | ||||
| Accuracy | ± 0.0001 % | ||||
| Stability | ± 1 ppm over 0°C to 55°C | ||||
| Time base aging | ±1 ppm/year | ||||
| External | LVDS, on CMI connectors | ||||
| Input range |
10 MHz ± 1 % 16.369 MHz ± 1 % |
||||
| Memory | Standard model | XM option | |||
| 8 bit resolution | |||||
| Measuring one channel | 1 MS per channel | 256 MS per channel | |||
| Measuring two channels | 512 KS per channel | 128 MS per channel | |||
| Measuring three or four channels | 256 KS per channel | 64 MS per channel | |||
| 12, 14, 16 bit resolution | |||||
| Measuring one channel | 512 KS per channel | 128 MS per channel | |||
| Measuring two channels | 256 KS per channel | 64 MS per channel | |||
| Measuring three or four channels | 128 KS per channel | 32 MS per channel | |||
| Trigger | |||||
| System | Digital, 2 levels | ||||
| Source | CH1, CH2, CH3, CH4, OR, digital external | ||||
| Trigger modes | Rising edge, falling edge, any edge, inside window, outside window, enter window, exit window, pulse width | ||||
| Level adjustment | 0 to 100 % of full scale | ||||
| Hysteresis adjustment | 0 to 100 % of full scale | ||||
| Resolution | 0.006 % (14, 16 bits) / 0.025% (12 bits) | ||||
| Pre trigger | 0 to selected record length, 1 sample resolution | ||||
| Post trigger | 0 to selected record length, 1 sample resolution | ||||
| Trigger hold-off | 0 to 63 MSamples, 1 sample resolution | ||||
| Trigger delay | 0 to 16 GSamples, 1 sample resolution | ||||
| Digital external trigger | |||||
| Input | Extension connector pins 1 and 2 | ||||
| Range | 0 to 2.5 V (TTL) | ||||
| Coupling | DC | ||||
| Jitter | ≤ 1 sample | ||||
| Multi-instrument synchronization | |||||
| Maximum number of instruments | Limited by number of available USB ports | ||||
| Synchronization accuracy | 0 ppm | ||||
| CMI interface | 2x, CMI 1, CMI 2 | ||||
| Required coupling cable | TP-C50H Coupling cable | ||||
| Maximum coupling cable length | 50 cm | ||||
| Probe calibration | |||||
| Output | Extension connector pins 3 (signal) and 6 (ground) | ||||
| Signal | Square wave | ||||
| Level | -1 V to 1 V | ||||
| Frequency | 1 kHz | ||||
| Interface | |||||
| Interface |
USB 3.0 SuperSpeed (5 Gbit/s); (USB 2.0 HighSpeed compatible) |
||||
| Power Requirements | |||||
| Power | From USB port or external input | ||||
| Consumption | 5 VDC 1200 mA max | ||||
| External power | From second USB port or power adapter | ||||
| Physical | |||||
| Instrument | |||||
| Height | 25 mm (1 inch) | ||||
| Length | 170 mm (6.7 inch) | ||||
| Width | 140 mm (5.2 inch) | ||||
| Weight | 500 g (17.6 ounce) | ||||
| USB cord length | 1.8 m (70 inch) | ||||
| I/O connectors | |||||
| Channel 1, 2, 3, 4 | Isolated BNC | ||||
| USB | Fixed cable with USB 3.0 type A connector, 1.8 m | ||||
| Extension connector | D-sub 9 pins female | ||||
| Power | 3.5 mm power socket | ||||
| CMI I/O connectors | 2 x HDMI type C socket | ||||
| System requirements | |||||
| PC I/O connection | USB 2.0, USB 3.0 or USB 3.1 | ||||
| Operating system |
Windows 7/8/10, 32 and 64 bits Linux (via LibTiePie SDK) |
||||
| Environmental conditions | |||||
| Operating | |||||
| Ambient temperature | 20°C to 25°C (10°C to 40°C without specifications) | ||||
| Relative humidity | 10 % to 90 %, non condensing | ||||
| Storage | |||||
| Ambient temperature | -20°C to 70°C | ||||
| Relative humidity | 5 % to 95 %, non condensing | ||||
| Certifications and Compliances | |||||
| CE mark compliance | Yes | ||||
| RoHS | Yes | ||||
| EN 55011:2009/A1:2010 | Yes | ||||
| EN 55022:2006/A1:2007 | Yes | ||||
| EN 61000-6-1:2007 | Yes | ||||
| EN 61000-6-3:2007 | Yes | ||||
| Package contents | |||||
| Instrument | Handyscope HS6 DIFF | ||||
| Measure leads | 4 x Measure lead TP-C812B, Differential BNC -> 4 mm banana jack | ||||
| Differential attenuator | 4 x Differential attenuator TP-DA10 | ||||
| Alligator clips, large | Alligator Clip TP-AC80I - Set, 8 large alligator clips | ||||
| Alligator clips, medium | Alligator Clip TP-AC10I - Set, 8 medium alligator clips | ||||
| Alligator clips, small | Alligator Clip TP-AC5 - Set, 8 small alligator clips | ||||
| Accessories | Handyscope power supply, external power cable for USB port, Probe compensation cable TP-DB9-BNC-30 (only with option SafeGround) | ||||
| Software | for Windows 7/8/10 on CD | ||||
| Drivers | for Windows 7/8/10 on CD | ||||
| Manuals |
instrument manual and software user's manuals color printed and digital on CD |
||||
| Optional Accessories | |||||
| Optional accessories for the Handyscope HS6 DIFF need to be ordered separately | |||||
| Oscilloscope probe | Oscilloscope Probe 1:1-1:10 - HP-3250I, only with SafeGround option G | ||||
| Measure lead single ended | Measure lead TP-BNCI-100, only with SafeGround option G | ||||
| Customer service | |||||
| TiePie engineering instruments are designed, manufactured and tested to provide high reliability. In the unlikely event you experience difficulties, the TiePie engineering instruments are fully warranted for three years. | |||||
| This warranty includes |
All parts and labor (excluding probes) No charge for return shipping Long-term 7 year support Upgrade to the latest software at no charge |
||||
| Optionally available | Extension to five year warranty, option W5 | ||||
Handyscope HS6 DIFF accessories
Optional accessories for the Handyscope HS6 DIFF are:
Measure lead TP-BNCI-100
The Measure lead TP-BNCI-100 is a 1 meter long shielded single ended BNC to 4 mm banana jacks measure lead. It is to be used with single ended oscilloscope inputs. The BNC connector at one end plugs directly on the instrument. The two other ends each feature a single 4 mm banana jack, on which application specific test points, clamps or probes can be plugged.
The Measure lead TP-BNCI-100 can only be used when the Handyscope HS6 DIFF is equipped with option G SafeGround and when SafeGround is enabled.
Oscilloscope Probe 1:1-1:10 - HP-3250I
The Oscilloscope Probe 1:1-1:10 - HP-3250I is a 1:1-1:10 selectable passive high impedance oscilloscope probe with 250 MHz bandwidth (1:10) designed and calibrated for use on oscilloscopes having an input impedance of 1 MOhm shunted by 20 pF. However, it may be compensated for use with an oscilloscope having an input capacitance of 10 to 30 pF.
The Oscilloscope Probe 1:1-1:10 - HP-3250I can only be used when the Handyscope HS6 DIFF is equipped with option G SafeGround and when SafeGround is enabled.
To perform a frequeny compensation of the Oscilloscope Probe 1:1-1:10 - HP-3250I on the Handyscope HS6 DIFF, the Probe compensation cable TP-DB9-BNC-30 is required. It is included with the Handyscope HS6 DIFF when option G SafeGround is ordered.
Other accessories
Several other accessories are available for use with the Handyscope HS6 DIFF. The most common related accessories, such as measure leads, oscilloscope probes and current clamps are listed here. Refer to the products page to find all TiePie products.
-
Differential probe SI-9002
-
Current clamp TP-CC80
-
Current clamp TP-CC600
-
Current Clamp TP-CC400
-
Measure lead TP-C812B
-
Measure lead TP-C1812B
-
Back Probe TP-BP85
-
Alligator Clip TP-AC80I
-
Test Probe TP-TP90 Set
-
Alligator Clip TP-AC50B Set
-
Accelerometer TP-ACC20
-
Handyscope power supply
-
TP-C50H Coupling cable
-
Rubber protector TP-RP-HS
-
Alligator Clip TP-AC10I
-
Alligator Clip TP-AC5
-
Oscilloscope Probe 1:1-1:10 - HP-3250I
-
Measure lead TP-BNCI-100
-
Differential attenuator TP-DA10
-
Carry case BB391
-
Probe compensation cable TP-DB9-
The Handyscope HS6 DIFF is available with different combinations of maximum sampling speed, memory depth, SureConnect, SafeGround and extended 5 year warranty. All models are listed below and can be ordered directly from stock.
| Order code | Max. sampling speed | Max. streaming speed | Memory | SureConnect | SafeGround | Warranty |
|---|---|---|---|---|---|---|
| EJHS6-DIFF-1000XMSG-W5 | 1 GS/s | 200 MS/s | 256 MS | • | • | 5 years |
| EJHS6-DIFF-1000XMSG | 1 GS/s | 200 MS/s | 256 MS | • | • | 3 years |
| EJHS6-DIFF-1000XMS-W5 | 1 GS/s | 200 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-1000XMS | 1 GS/s | 200 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-1000XMG-W5 | 1 GS/s | 200 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-1000XMG | 1 GS/s | 200 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-1000XM-W5 | 1 GS/s | 200 MS/s | 256 MS | 5 years | ||
| EJHS6-DIFF-1000XM | 1 GS/s | 200 MS/s | 256 MS | 3 years | ||
| EJHS6-DIFF-1000SG-W5 | 1 GS/s | 200 MS/s | 1 MS | • | • | 5 years |
| EJHS6-DIFF-1000SG | 1 GS/s | 200 MS/s | 1 MS | • | • | 3 years |
| EJHS6-DIFF-1000S-W5 | 1 GS/s | 200 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-1000S | 1 GS/s | 200 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-1000G-W5 | 1 GS/s | 200 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-1000G | 1 GS/s | 200 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-1000-W5 | 1 GS/s | 200 MS/s | 1 MS | 5 years | ||
| EJHS6-DIFF-1000 | 1 GS/s | 200 MS/s | 1 MS | 3 years | ||
| EJHS6-DIFF-500XMSG-W5 | 500 MS/s | 100 MS/s | 256 MS | • | • | 5 years |
| EJHS6-DIFF-500XMSG | 500 MS/s | 100 MS/s | 256 MS | • | • | 3 years |
| EJHS6-DIFF-500XMS-W5 | 500 MS/s | 100 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-500XMS | 500 MS/s | 100 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-500XMG-W5 | 500 MS/s | 100 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-500XMG | 500 MS/s | 100 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-500XM-W5 | 500 MS/s | 100 MS/s | 256 MS | 5 years | ||
| EJHS6-DIFF-500XM | 500 MS/s | 100 MS/s | 256 MS | 3 years | ||
| EJHS6-DIFF-500SG-W5 | 500 MS/s | 100 MS/s | 1 MS | • | • | 5 years |
| EJHS6-DIFF-500SG | 500 MS/s | 100 MS/s | 1 MS | • | • | 3 years |
| EJHS6-DIFF-500S-W5 | 500 MS/s | 100 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-500S | 500 MS/s | 100 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-500G-W5 | 500 MS/s | 100 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-500G | 500 MS/s | 100 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-500-W5 | 500 MS/s | 100 MS/s | 1 MS | 5 years | ||
| EJHS6-DIFF-500 | 500 MS/s | 100 MS/s | 1 MS | 3 years | ||
| EJHS6-DIFF-200XMSG-W5 | 200 MS/s | 40 MS/s | 256 MS | • | • | 5 years |
| EJHS6-DIFF-200XMSG | 200 MS/s | 40 MS/s | 256 MS | • | • | 3 years |
| EJHS6-DIFF-200XMS-W5 | 200 MS/s | 40 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-200XMS | 200 MS/s | 40 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-200XMG-W5 | 200 MS/s | 40 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-200XMG | 200 MS/s | 40 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-200XM-W5 | 200 MS/s | 40 MS/s | 256 MS | 5 years | ||
| EJHS6-DIFF-200XM | 200 MS/s | 40 MS/s | 256 MS | 3 years | ||
| EJHS6-DIFF-200SG-W5 | 200 MS/s | 40 MS/s | 1 MS | • | • | 5 years |
| EJHS6-DIFF-200SG | 200 MS/s | 40 MS/s | 1 MS | • | • | 3 years |
| EJHS6-DIFF-200S-W5 | 200 MS/s | 40 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-200S | 200 MS/s | 40 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-200G-W5 | 200 MS/s | 40 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-200G | 200 MS/s | 40 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-200-W5 | 200 MS/s | 40 MS/s | 1 MS | 5 years | ||
| EJHS6-DIFF-200 | 200 MS/s | 40 MS/s | 1 MS | 3 years | ||
| EJHS6-DIFF-100XMSG-W5 | 100 MS/s | 20 MS/s | 256 MS | • | • | 5 years |
| EJHS6-DIFF-100XMSG | 100 MS/s | 20 MS/s | 256 MS | • | • | 3 years |
| EJHS6-DIFF-100XMS-W5 | 100 MS/s | 20 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-100XMS | 100 MS/s | 20 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-100XMG-W5 | 100 MS/s | 20 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-100XMG | 100 MS/s | 20 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-100XM-W5 | 100 MS/s | 20 MS/s | 256 MS | 5 years | ||
| EJHS6-DIFF-100XM | 100 MS/s | 20 MS/s | 256 MS | 3 years | ||
| EJHS6-DIFF-100SG-W5 | 100 MS/s | 20 MS/s | 1 MS | • | • | 5 years |
| EJHS6-DIFF-100SG | 100 MS/s | 20 MS/s | 1 MS | • | • | 3 years |
| EJHS6-DIFF-100S-W5 | 100 MS/s | 20 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-100S | 100 MS/s | 20 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-100G-W5 | 100 MS/s | 20 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-100G | 100 MS/s | 20 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-100-W5 | 100 MS/s | 20 MS/s | 1 MS | 5 years | ||
| EJHS6-DIFF-100 | 100 MS/s | 20 MS/s | 1 MS | 3 years | ||
| EJHS6-DIFF-50XMSG-W5 | 50 MS/s | 10 MS/s | 256 MS | • | • | 5 years |
| EJHS6-DIFF-50XMSG | 50 MS/s | 10 MS/s | 256 MS | • | • | 3 years |
| EJHS6-DIFF-50XMS-W5 | 50 MS/s | 10 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-50XMS | 50 MS/s | 10 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-50XMG-W5 | 50 MS/s | 10 MS/s | 256 MS | • | 5 years | |
| EJHS6-DIFF-50XMG | 50 MS/s | 10 MS/s | 256 MS | • | 3 years | |
| EJHS6-DIFF-50XM-W5 | 50 MS/s | 10 MS/s | 256 MS | 5 years | ||
| EJHS6-DIFF-50XM | 50 MS/s | 10 MS/s | 256 MS | 3 years | ||
| EJHS6-DIFF-50SG-W5 | 50 MS/s | 10 MS/s | 1 MS | • | • | 5 years |
| EJHS6-DIFF-50SG | 50 MS/s | 10 MS/s | 1 MS | • | • | 3 years |
| EJHS6-DIFF-50S-W5 | 50 MS/s | 10 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-50S | 50 MS/s | 10 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-50G-W5 | 50 MS/s | 10 MS/s | 1 MS | • | 5 years | |
| EJHS6-DIFF-50G | 50 MS/s | 10 MS/s | 1 MS | • | 3 years | |
| EJHS6-DIFF-50-W5 | 50 MS/s | 10 MS/s | 1 MS | 5 years | ||
| EJHS6-DIFF-50 | 50 MS/s | 10 MS/s | 1 MS | 3 years |
工程咨询
数据中心
采油平台
发电厂
核电厂
输配电
政府及军事设施
冶金矿业
制造业
可再生能源
铁路运输系统
教育系统
Handyscope HS6 DIFF downloads
Several downloads for the Handyscope HS6 DIFF are listed below, including Multi Channel oscilloscope software, drivers and manuals.
Driver & Software
| Description | Version | Remarks | Size | |
|---|---|---|---|---|
| USB driver | 8.1.5 | Windows 7/8/10, 32 and 64 bit | 3.63 MiB | |
| Multi Channel software | 1.37.1 | 32 and 64 bit, Windows 7/8/10, including PDF manual | 58.73 MiB | |
| Multi Channel DEMO | 1.37.1 | 32 and 64 bit, Windows 7/8/10, including PDF manual | 57.30 MiB |
Manuals & Documents
| Description | Version | Remarks | Size | |
|---|---|---|---|---|
| Multi Channel software manual | 1.07 | English | 4.63 MiB | |
| Handyscope HS6 DIFF Instrument manual | 2.18 | English | 1.54 MiB | |
| Datasheet for Handyscope HS6 DIFF | English | 2.41 MiB |
Programming
Interfacing the Handyscope HS6 DIFF with third party software and developing own software requires the LibTiePie Software Development Kit. Detailed information on the LibTiePie SDK, downloads for Windows and Linux platforms and bindings and programming examples for various programming environments can be found in the LibTiePie pages.
