TheINDUS WAYhas been deeply rooted over the past 27 years of business and is engrained in the way we operate on a day-to-day basis. A creed of unmatched customer service has led to unparallel customer loyalty and satisfaction. A privately held business since 1985, Indus has its roots entrenched in the micrographics industry. Dating back to the 1960's and earlier the facility that Indus presently occupies was previously operated by NCR which headed their micrographics division out of the West Salem, WI location.
During the 1970's early 1980's the micrographics industry thrived and NCR flourished. However, in 1985, NCR decided to exit the micrographics industry and close their West Salem, Wisconsin plant. Twenty-five jobs were retained because of the establishment of a new company,Indus International, Inc.whose founder and President is Ameen Ayoob. Indus International, Inc. is a Minority Owned business as certified by the State of Wisconsin and is classified as a Small Business as defined by the U.S. Department of Commerce.

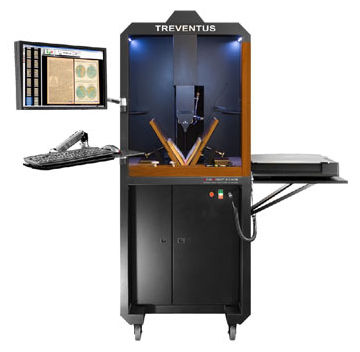

Mass Digitization System
*Design and specifications subject to change without prior notice.
Indus is an authorized seller of the ScanRobot in North America and provides
factory-certified On-site Service for the unit.
Advanced Automatic Microfiche Scanner
The Technology
Fully Automatic Digitization
Many microfilm archives encompass very large quantities of individual microfiches. With the fully automatic digitization technology of the DRS DIGITIZER, they can be recorded problem-free and saved as a file. Every file can be edited, digitally archived, and analyzed with an image processing program.
CCD Full Frame Chip Technology
Unlike other conventional systems, the DRS DIGITIZER uses a high-resolution CCD full frame chip camera in order to create an image with up to 256 grayscales. Optimal illumination occurs via a non-wearing LED lighting technology specially designed for DRS. Every document on a microfilm is automatically recorded and digitized with high quality. Even sophisticated originals are perfectly readable.
Gentle Feed System
The antistatic repository contains several hundred microfiches in all prevalent sizes. By means of a pneumatic feed system developed by us, the originals are transported to the light table with the utmost care. Even electrostatically charged fiche and jackets are reliably separated by an air current.
Powerful Software
The image recognition and processing software of the DRS DIGITIZER determine the precise position of every individual document on the microfiche. Every document is individually surveyed, aligned and cropped. The image file can be stored for processing in different file formats according to the customer's desire.
Technical Specifications
CCD chip camera
2.300×3.500 pixels, full frame chip, chipsize: 23x35mm (higher resolution possible upon request)
Resolution
Up to 300 dpi (higher resolution possible) 12 bit greyscale http://www.indususa.com/wp-content/themes/Adisoft/images with high spatial resolution
Speed
approx. 0,5sec/Image (in grayscale levels)
Machine Throughput
up to 140.000 Images in 24 hours (The refill interval is approx. 12 hrs. for COM fiches)
Fiche/Jacket Types
Supports all standard fiche and jackets incl. COM, AB-Dick, silver, diazo, positiv, negativ, duplex, cine and comic mode. Image can be 16mm and 35 mm mixed types 35mm/16mm possibel in one cycle
Reduction Ratios
15x to 50x
Fiche/Jacket Formats
105mmx148mm and 103mmx152mm (metric, imperial)
other dimensions possible
Fiche/Jacket Feed
Automatic, preserves originals because low-contact.
No recording of the individual fiche in cassettes. Original holder holds up to 200 fiches, extensible to more than 1000 fiches automatic turning of the processed fiche/jackets. Removal in original order.
Document detection
Precise automatic position detection of the documents on the fiche/jackets,also for difficult, low-contrast originals. Also grid originals are possible. Manual document detection possible.
Quality
Individual quality optimisation of each document through automatic contrast optimisation.
High quality of digitalization is achieved by
recise exposure through chip-on-board exposure technology. No motion during the digitalization process. Pixel-precise positioning of the fiche/jackets through high-quality x-y machine tables
Further processing
Automatic cropping of the documents.
Automatic aligning of the documents.
Customized defaults possible, by open software structure
