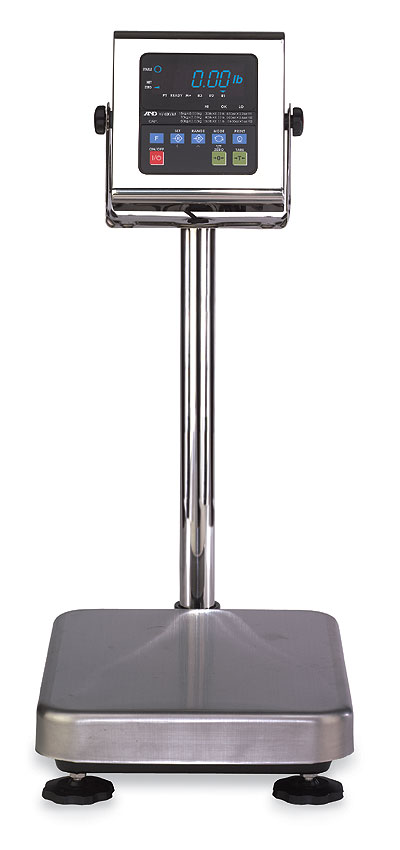

A&D HW-100KWP High Resolution Washdown Industrial Scale, Capacity 200lbs.

A&D Balances  |   Mfr# HW-100K-WP  |   Item# EJH-11122-22

• • Water-resistant stainless steel construction offers protection from the most challenging washdown environments
  • Set point control for simple batching
  • Comparator buzzer and hold function
  • Adjustable and detachable stainless steel display
  • IP-65 stainless steel construction withstands harsh washdown and outdoor conditions
  • Vacuum Fluorescent Display provides a bright, clear unmistakable display in dimly lit areas
  • Counting function for inventory control
  • Comparator HI/LO/GO with color coded LED indicators allows fast, precise, unmistakable manual checkweighing
  • Bidirectional RS-232C interface allows connection to a printer or PC and RS-485 allows networking of up to 16 scales for PC interfacing
These scales provide counting, percentage, and comparator functions. Ideal for packaging, shipping, pharmaceutical, and industrial applications.

HV-WP series of scales offer resolution that can be changed automaticlly for 3 capaccity levels.

HW-WP series of scales has high resolution of 1/10,000.


What's Included:
120 VAC power adapter with 6-ft (1.8 m) cord, and WinCT software (for downloading to spreadsheets)

Specifications

Product Type		Bench/Floor Industrial Scales
Calibration		External
Calibration mass (kg)		100
Capacity (g)		100000
Capacity (kg)		100
Capacity (lbs)		200
Housing dimensions		25 x 43.7 x 46.6 cm
Dimensions (" W)		9-3/4
Dimensions (" H)		17-1/5
Dimensions (" D)		18-1/4
Display		7-segment vacuum fluorescent display, character height=20 mm
Platform size (L x W)		15-3/8" x 21" (39.1 x 53.3 cm)
Pan size (L x W)		9-3/4" x 9-3/4" (25 x 25 cm)
Readability (g)		10
Model		HW-100K-WP
Qty/ea		1
Linearity (g)		±20
Brand		A&D Balances
Weighing units		kg, lb, %, pcs
Power (VAC)		120
Output		built-in bidirectional RS-232
Manufacturer number		HW-100K-WP
