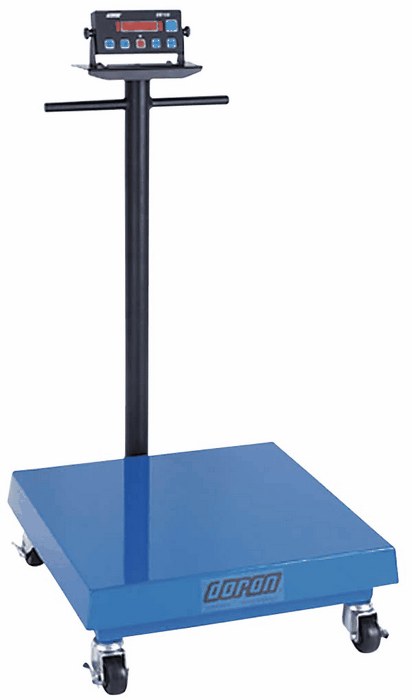

Doran MVP Industrial Scale, 450 kg x 100 g, 115 VAC

Doran  |   Mfr# MVP51000SP-20   |   Item# EJH-11930-34

• • Built for years of abuse — Doran steel bases are remarkably rugged
  • Sturdy, welded tube steel frame construction
  • Seven overload stops for load cell protection
  • heavy-duty 20"H column
  • Conveyor option includes steel rails with galvanized rollers
To illustrate the durability of the welded tubular construction, a 4000-lb SUV was driven over the scale base. Prior to this procedure, a 50-lb NIST certified calibration weight was placed on the scale yielding a result of 50.0 lbs. Following the procedure, a second measurement was taken with the calibration weight which again yielded 50.0 lbs—indicating the scale withstood the abuse without damage.
The general-purpose base features a two-part polyurethane finish which provides excellent wear and abrasion protection, and mild steel base platter. The optional mobility kit includes a 36" tall column with handles, four 3"-dia locking swivel casters, and indicator mounting plate.

What's Included:
Base, indicator, 16" (40.6 cm) H steel column, and AC power adapter

Specifications

Product Type		Bench/Floor Industrial Scales
Calibration		External
Capacity (g)		450000
Capacity (kg)		450
Capacity (lbs)		1000
Display		6 Digit, red LED
Platform dimensions		24" x 24" x 5-1/4" (61 x 61 x 13.3 cm)
Readability (g)		100
Model		MVP51000SP-20
Qty/ea		1
Linearity (g)		±100
Brand		Doran
Repeatability (g)		±100
Repeatability (lbs)		±0.2
Weighing units		g, kg, oz, lb, lb:oz
Power (VAC)		115
Output		RS-232
Manufacturer number		MVP51000SP-20
