压力计EJH-68457-34 订购编号:EJH-68457-34
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

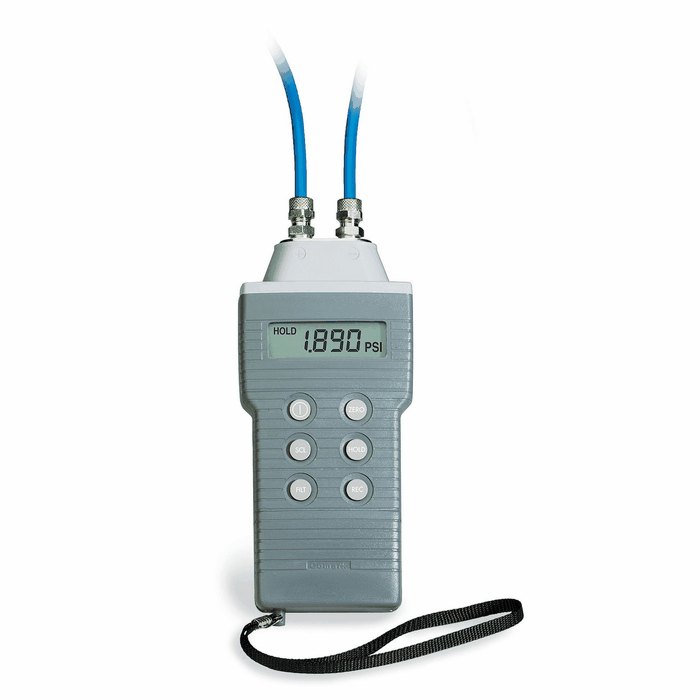

C9503/IS : IS Pressure Meter 0/5psi Intrinsically Safe Pressure Meter
Fluke | Item#EJH-68457-34
Multi-Scale Pressure Meters All generally used pressure scales are standard in each instrument, practically eliminating the need to purchase extra meters as measurement requirements change. Each model has a carefully selected measurement range and can measure positive and negative (vacuum) gauge or differential pressures. Measurements, including maximum and minimum readings, can be held and displayed in any available scale. The adjustable zero value, to compensate for ambient temperature fluctuations, is also permanently held in memory, until changed by the user. The selectable, averaged reading function provides a further aid to accuracy by filtering out transient readings to give a more stable displayed reading. Each instrument can display its maximum pressure and has over-range indication. FEATURES
Accessories
Comark CRS/1 Protectve Rubber Boot, for Digital Pressure Meter
EJH-68457-39
Availability
Innocal, NIST Calibration Service for Manometers
EJH-17090-31
Multi-Scale Pressure Meters All generally used pressure scales are standard in each instrument, practically eliminating the need to purchase extra meters as measurement requirements change. Each model has a carefully selected measurement range and can measure positive and negative (vacuum) gauge or differential pressures. Measurements, including maximum and minimum readings, can be held and displayed in any available scale. The adjustable zero value, to compensate for ambient temperature fluctuations, is also permanently held in memory, until changed by the user. The selectable, averaged reading function provides a further aid to accuracy by filtering out transient readings to give a more stable displayed reading. Each instrument can display its maximum pressure and has over-range indication. FEATURES
- Multiple pressure scales with selected scale held in memory
- Intrinsically Safe models available
- Stylish, rugged ABS case, dust and waterproof to IP67, BS EN 60529 and IEC 529
- Choice of four ranges, 0 to ±2 PSI/0 to ±140 mbar 0 to ±5 PSI/0 to ±350 mbar 0 to ±30 PSI/0 to ±2000 mbar 0 to ±100 PSI/0 to ±6900 mbar
- High accuracy
- Selectable auto switch off
- Gauge (single input) or differential (double input) measurement of positive and negative (vacuum) pressures
- Adjustable zero value to compensate for ambient temperature
- Records maximum and minimum pressures
- Hold function with held readings displayed in any scale
- Averaged reading function to filter out transient reading
| Specifications | ||
| Product Type | Digital Pressure/Vacuum Gauge | |
| Unit of Measurement | psi, mBar, " H2O, " Hg, Torr, Pa, kPa, mm H2O, cm H2O, kg/cm2 | |
| Resolution | 0.001 psi | |
| Range | ±5 psi | |
| Process connection | 1/8" BSP(F) | |
| Battery life | 90 hours | |
| Accuracy | ±0.2% of full-scale | |
| Case | ABS | |
| Power | 9 V PP3 6F22 - MN1604 UCAR9V | |
| Model | C9503/IS | |
| Qty/ea | 1 | |
| Brand | Fluke | |
