TSI DP-Calc Micromanometer, Model 5825

TSI  |   Mfr# 5825  |   Item# EJH-10508-77

• • Simple-to-operate, handheld digital micromanometer
  • Measure differential and static pressure from –15 to 15 in. H₂O (–3735 to 3735 Pa)
  • Model 10508-77 also includes USB cable, and software.

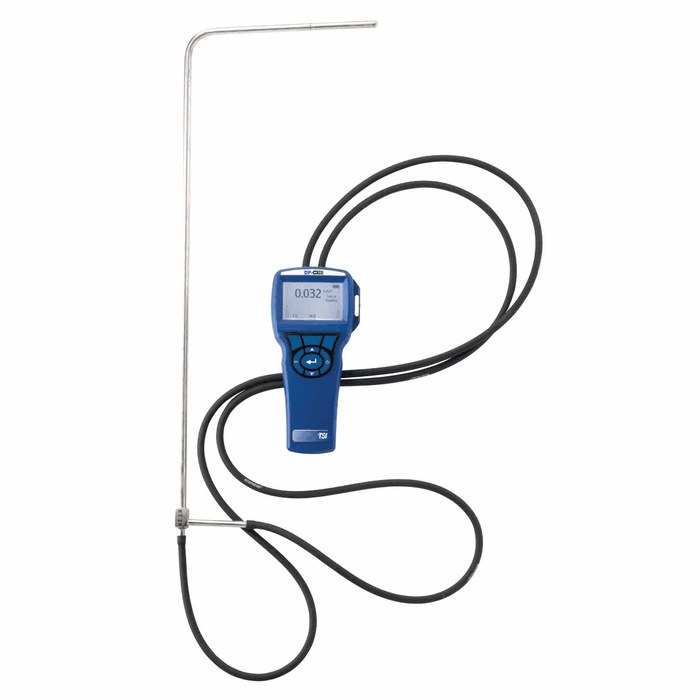

The DP-CALC™ micromanometers allow you to easily make fast, accurate differential and static pressure measurements. These robust instruments can also calculate and display velocity when using an optional pitot tube.Advanced model 10508-77 also features adjustable time constant, calculated flow, programmable K-factors, datalog up to 12,700 sample points with time and date stamp, and calculate statistical data.
What's Included:
Hard carrying case, manual, calibration certificate supplied by the manufacturer, and 4 AA batteries.

Specifications
Product Type		Manometer
Temp range		40 to 113°F (5 to 45°C)
Qty/ea		1
Manufacturer number		5825
Brand		TSI
Display		LCD
Logging intervals		1 second to 1 hour
Data Logging		12,700+ samples and 100 test IDs
Velocity range		250 to 15,500 ft/min (1.27 to 78.7 m/s)
Velocity resolution		1ft/min (0.1 m/s)
Velocity accuracy		±1.5% at 2,000 ft/min (10.16 m/s)
Dimensions		7"W x 3-3/8"H x 2"D (17.8 x 8.6 x 5.1 cm)
Time constant		User Selectable
Power		Four AA batteries (included)

Accessories

Energizer Regular Alkaline Batteries, 1.5 V, AA, 4/pack
EJH-09376-01


TSI/Alnor 634634000 12" Pitot Static Tube
EJH-10302-41


TSI/Alnor 634634001 18" Pitot Static Tube
EJH-10302-42


TSI/Alnor 634634003 36" Pitot Static Tube
EJH-10302-44


TSI/Alnor 634634004 Telescoping Pitot Tube
EJH-10302-45


TSI/Alnor 634634005 60" Pitot Static Tube
EJH-10302-46



Calibrations

Innocal, NIST Calibration Service for Manometers

EJH-17090-31
