Pressure Meter with Formatted Data Logging SD Card

Cole-Parmer  |   Mfr# PM930SD   |   Item# EJH-68602-20

Note: Interchangeable pressure tranducers are required for use.

• • Measure a variety of pressure ranges with a single meter
  • Settable parameters of date, time, auto power off, beep sound, sampling time, decimal point or comma decimal division
  • Data logging sampling time settable from 1 second to 9 hours
  • Minimum and maximum recallable readings

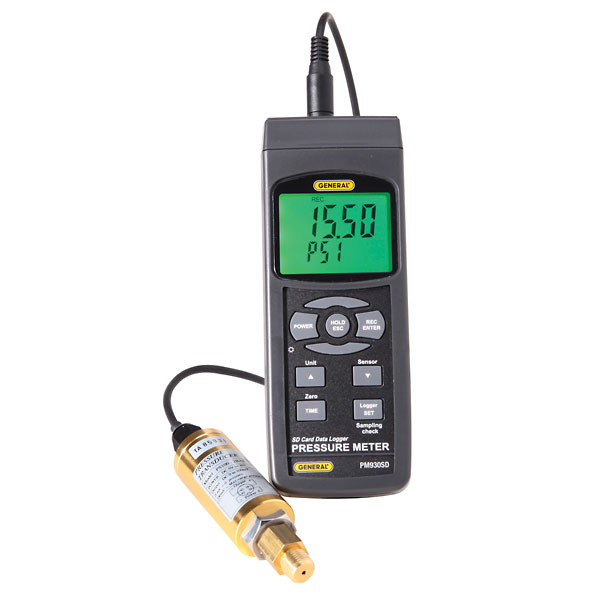

This versatile meter, along with the interchangeable transducers, provides a great solution for pressure measurement requirements in HVAC/R, industrial, and process applications. The transducers connect to the meter via a 4-pin M12 electronic connection with a 3-ft (0.9-m) long cable. The 2 GB SD card stores data in Excel® format for logging and downloading onto your computer for record keeping.

Note: Interchangeable pressure tranducers are required for use.
What's Included:
2 GB SD memory card, carrying case, and user’s manual.

Specifications
Product Type		Digital Manometers
Accuracy		±0.5% of full-scale reading plus 1 digit
Qty/ea		1
Manufacturer number		PM930SD
Brand		Cole-Parmer
Display		Four-digit LCD, 0.5" (12.7 mm) H
Memory capacity		1 GB (SD card)
Power		Six AA batteries (not included)
Data storage		Removable SD card

Accessories

Pressure Transmitter for 68602-20, 0 to 29 psi
EJH-68602-22


Pressure Transmitter for 68602-20, 0 to 72.5 psi
EJH-68602-24


Pressure Transmitter for 68602-20, 0 to 145 psi
EJH-68602-26


Calibrations

InnoCal, NIST Calibration Service for Pressure/Vacuum Gauges, = 0.75%

EJH-17040-12
