压力计EJH-68603-04 订购编号:EJH-68603-04
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

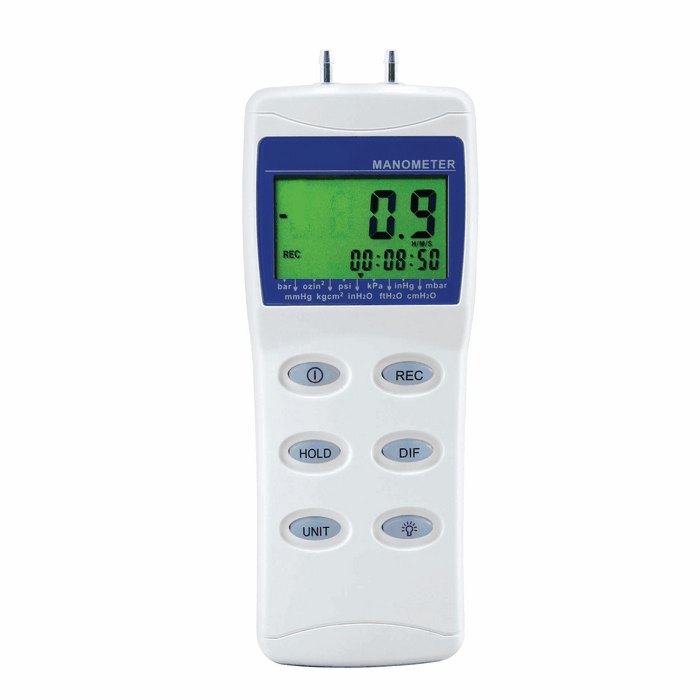

General Tool DM8230 Digital Manometer with range of 0 to 30 psi
Item# EJH-68603-04
Accessories
AC Power Adapter for Thermoanemometers and Manometers; 115 VAC
EJH-68603-20
Communication Cable for Digital Manometer w/ Backlight Display, RS-232
EJH-68603-22
Software for Digital Manometer with Backlight Display
EJH-68603-24
Calibrations
Innocal, NIST Calibration Service for Manometers
EJH-17090-31
-
- Read gauge and differential pressure in 11 units of measure!
- Ideal for measuring low differential pressure in clean rooms, test and balance, HVAC, pneumatic systems, and computer peripherals
- Large backlight LCD, maximum, minimum, hold, and auto power off functions
- Built-in RS-232 port downloads information to your PC
- Order cable and software separately from Accessories below
These manometers are for use with noncorrosive gases and air only, not liquids.
What's Included:
connection hose, 9 V battery and hard shell carrying case.
| Specifications | ||
| Product Type | Manometer | |
| Media compatibility | non-corrosive air and gases | |
| Unit of Measurement | psi, " H2O, kPa, ft H2O, " Hg, cm H2O, mbar, bar, mm Hg, oz inch2, kg cm2 | |
| Resolution | 0.02 psi | |
| Range | 0 to 30 psi | |
| Output | RS-232 | |
| Max pressure (psi) | 30 | |
| Process connection | 3/16" barb | |
| Accuracy | ±0.3% full-scale | |
| Power | one 9 V battery (included) | |
| Model | DM8230 | |
| Qty/ea | 1 | |
| Brand | General Tool | |
| Display | 4-digit, 1/2"H LCD with backlight | |
AC Power Adapter for Thermoanemometers and Manometers; 115 VAC
EJH-68603-20
Communication Cable for Digital Manometer w/ Backlight Display, RS-232
EJH-68603-22
Software for Digital Manometer with Backlight Display
EJH-68603-24
Calibrations
Innocal, NIST Calibration Service for Manometers
EJH-17090-31
