液体循环加热的压力计EJH-10374-57 订购编号:EJH-10374-57
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

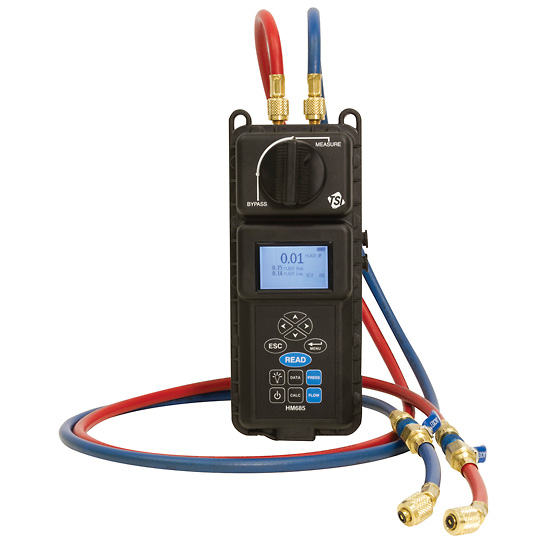

TSI Alnor HM685 Hydronic Manometer Water Air Flow Meter
Alnor | Item# EJH-10374-57
Accessories
Energizer Regular Alkaline Batteries, 1.5 V, AA, 4/pack
EJH-09376-01
Calibrations
Innocal, NIST Calibration Service for Manometers
EJH-17090-31
-
- Use to balance hydronic heating and cooling systems and to check pump performance.
- Reads pressure in PSI, ft H2O, kPa, mm HG, in HG, in H2O, bar
- Reads volume in USGPM, UKGPM, m3h, l/s, l/m
- Durable splash-proof case
-
Large backlit display for use in low illumination
- Performs flow calculations for determining brake power, heat flow, and flow coefficients(Cv/Kv)
- Two inputs for temperature probes
The perfect instrument for test and balancing HVAC systems, checking pump performance, and setting balancing valves. Provides flow and BTU/hr calculations. Measure and display differential, high side, and low side pressures simultaneously without having to change hose connections or instrument valve settings. Operates on four alkaline or NiMH rechargeable batteries.The HM685 can display volumetric flow when a Cv (Kv) factor is entered into the instrument. Up to 100 Cv (Kv) factors can be entered. In addition, the HM685 can calculate brake power, heat flow, Cv (Kv) factors, and impeller sizing. Up to 4000 data points can be stored to memory for later recall or downloaded to a PC using this USB interface.
| Specifications | ||
| Product Type | Manometer | |
| Range |
Pressure: 0 to 300 psi (2068 kPa) gauge differential Flow: 0 to 2271 cu. m/hr, 0 to 9999 USGPM, (0 to 6.31 l/s) |
|
| Units |
Pressure: psi, in water, ft water, kPa, mm Hg, in Hg, m water, bar Flow: USGPM, UKGPM, cu. m/hr, l/s, l/m |
|
| Resolution |
Pressure: 0.001 psi (0.01 kPa) Flow: 0.0001 USGPM (0.00001 l/s) |
|
| Accuracy |
Press: ±1% of reading or 0.072 psi (0.5 kPa) Flow: per pressure accuracy + valve deviation |
|
| Temp range | 40 to 113°F (5 to 45°C) | |
| Temp accuracy | ±0.5°F (0.3°C) | |
| Model | HM685 | |
| Qty/ea | 1 | |
| Brand | Alnor | |
| Display | Dot matrix LCD with backlight | |
| Logging intervals | User selectable (1, 5, 10, 20, and 30 seconds) | |
| Data Logging | 4000 combined readings, 100 test IDs | |
| Dimensions | 11 1/8" x 4 3/4" x 3 1/2" (282 x 119 x 88 mm) | |
| Power | Four AA-size alkaline or NiMH; min. 12 hours continuous use | |
