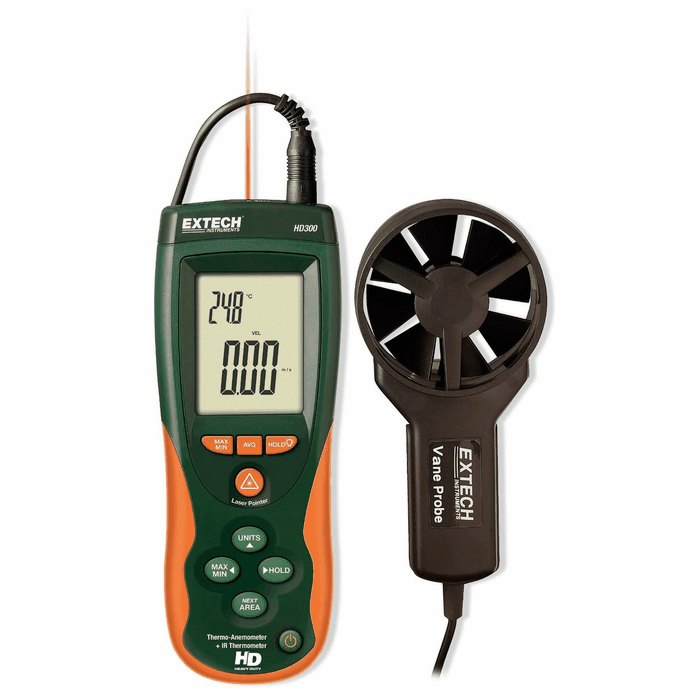

Extech HD300 Heavy-Duty CFM/CMM Vane Thermoanemometer

Extech  |   Mfr# HD300  |   Item# EJH-10508-34

• • Built-in infrared thermometer measures noncontact surface temperature of objects unsafe or difficult to reach
  • Meter includes a hand held air vane, with 4 foot cable for greater measurement flexibility
  • Infrared thermometer measures remote surface temperatures to 932°F (500°C) with 30:1 distance to spot ratio and Laser pointer
  • Simultaneous display of Airflow in CFM/CMM or air velocity plus ambient temperature
  • Easy-to-set area dimensions are stored in the meter’s internal memory for the next power on
  • Large (9999 count) LCD backlit display
  • 20 point average for airflow
  • USB port includes software for data analysis
This thermoanemometer features an Infrared Thermometer that measures remote surface temperatures to 932°F (500°C) with 30:1 distance to target ratio and laser pointer. The heavy duty rugged double molded housing is designed for harsh environments and is perfect for environmental analysis, lab or plant maintenance applications.

The meter simultaneously displays air flow in CFM/CMM or air velocity plus ambient temperature on the large backlit display. Up to 8 area dimensions can be programmed in to the internal memory. Additional features include: a type K thermocouple connection, 20 point air flow averaging, Data Hold, Min/Max, and auto-power-off. User can select desired unit of measure for both temperature and air velocity.
What's Included:
Vane probe, type K temperature probe, protective rubber holster, carrying case, and 9 V battery.

Specifications
Product Type		Vane Anemometer
Temp resolution		0.1°F (0.1°C)
Volume range		0 to 999,900 cfm (cfm = ft3/min) 0 to 999,900 cmm (cmm = m3/min)
Temp range		-14 to 140°F (-10 to 60°C)
Temp accuracy		±4% (2°C)
Qty/ea		1
Manufacturer number		HD300
Temperature range (InfraRed)		-58 to 932°F (-50 to 500°C)
Brand		Extech
Temperature resolution (InfraRed)		0.1°F (0.1°C)
Temperature accuracy (InfraRed)		±2% or ±4°F (2°C)
Air velocity range		80 to 5900 ft/min 0.4 to 30.00 m/s 0.9 to 67 mph 1.4 to 108.0 km/hr 0.8 to 58.0 knots
Air velocity resolution		1 ft/min 0.01 m/s 0.1 mph 0.1 km/hr 0.1 knots
Air velocity accuracy		±3% of reading
Display		dual-line LCD, backlit
Dimensions		8" L x 3" W x 2" H (20.3 x 7.6 x 5.1 cm)
Temperature range (Type K)		-148 to 2501°F (-100 to 1372°C)
Temperature resolution (Type K)		0.1°F (0.1°C)
Temperature accuracy (Type K)		±1% or ±2°F (±1°C)
Power		one 9V battery (included)
