口袋叶片式风速仪 EJH-10323-51 订购编号:EJH-10323-51
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

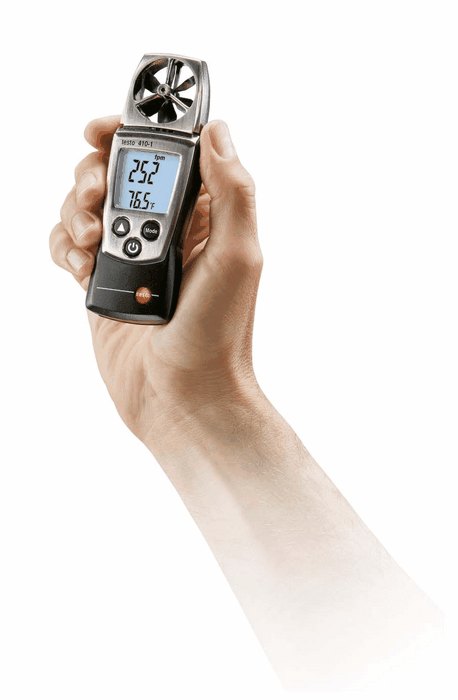

Testo 410 Pocket Line Thermoanemeter, 1.5" vane
Testo | Mfr# 0560 4101 | Item# EJH-10323-51
Accessories
Energizer Regular Alkaline AAA Batteries, 1.5 V, 12/pack
EJH-09376-00
Calibrations
NIST-Traceable Calibration; Anemometers, Vane-Type
EJH-17101-01
-
- Ergonomically designed air velocity and temperature meter in one
- Small, handy and easy to operate
This rugged meter is pocket sized, so it can always be with you when you need it. Ideal for measuring general airflow or when monitoring more specific HVAC conditions. Professional-grade sensors produce accuracies is uncommon in a meter this size. The menu-driven three button design allows for easy selection of the meters function. Both models feature air velocity, ambient temperature, min/max/hold functions, selectable velocity and temperature units, and a large easy-to-read backlit display. Unique hard shell protective cap snaps on and off the meter. When in use, the cap fully encases the meter, protecting everything including the display screen and sensors.
What's Included:
Wrist strap, belt holder, two AAA batteries, and calibration document supplied by the manufacturer.
| Specifications | ||
| Product Type | Vane Anemometer | |
| Temp resolution | 0.1 ° F/C | |
| Temp range | -14 to 122 °F (-25 to 50 ° C) | |
| Temp accuracy | ± 0.9 ° F ( ± 0.5 ° C), otherwise ± 2% of m.v. | |
| Model | 0560 4101 | |
| Qty/ea | 1 | |
| Manufacturer number | 0560 4101 | |
| Brand | Testo | |
| Air velocity range | 39 to 3,937 ft/min (0.4 to 20 m/sec) | |
| Air velocity resolution | 1 ft/min (0.01 m/s) | |
| Air velocity accuracy | 20 fpm, 2% of m.v. | |
| Display | Two-line backlit display | |
| Battery life | 200 hr | |
| Dimensions | 1.8"W x 5.2"H x 1"D | |
| Power | two AAA batteries (included) | |
