512型数字微分压力计 EJH-10383-13 订购编号:EJH-10383-13
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

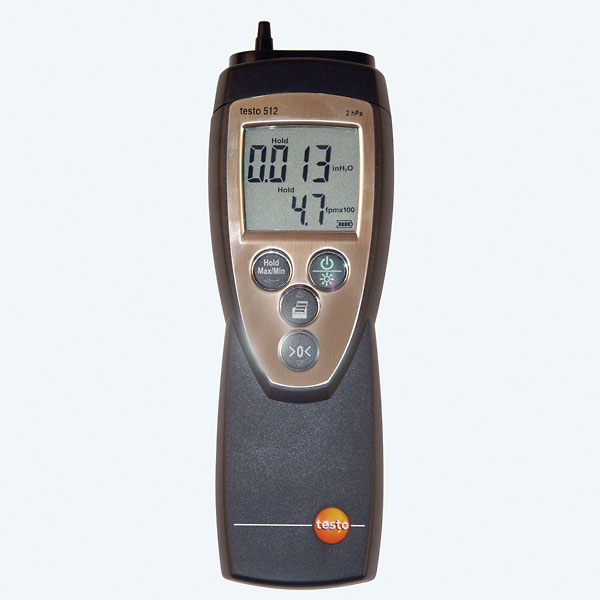

Testo Type 512 Digital Differential Manometer, ±29 psi
Testo | Mfr# 0560 5129 | Item# EJH-10383-13
Accessories
Energizer Regular Alkaline AAA Batteries, 1.5 V, 12/pack
EJH-09376-00
Testo 0516 0201, Transport Case for Instrument and Probes 10383-90
EJH-10383-90
Testo 0516 0221, TopSafe Protection Cover with 2 Attachment Magnets
EJH-10383-91
Testo 0554 0440, 16 Ft Silicone Hose for 512 Manometers 10383-92
EJH-10383-92
Testo 0554 0549, Universal Wireless IR Printer 10383-93
EJH-10383-93
Testo 0554 0568, Replacement Thermal Paper for IRDA Printer, 6 Rolls per Pack
EJH-10383-94
Testo 0635 2145, 13" Long Pitot Tube for Type 512 Manometers
EJH-10383-95
Calibrations
Innocal, NIST Calibration Service for Manometers
EJH-17090-31
-
- On-site readings documentation
- Simultaneous display of flow and pressure value
- Built-in density compensation
- Smoothing adjustable between 1 to 20 display refreshes (0.5 s) as sliding mean
- Readings printout with date/time and Min./Max. values
- Hold/Max/Min function
- Backlight display
The Testo Series 512 shows pressure and flow simultaneously in an easy-toread, large, backlit display. Measurement data can be printed on site with date and time as well as minimum and maximum values. Order printer and additional printer paper seperately under accessories below. The manometer has two switchable units for flow: m/s and fpm. Eight units can be set for pressure: kPa, hPa, Pa, mmH2O, mmHg, psi, inch H2O, inch Hg. Adjustable smoothing for sliding mean calculation, density compensation is built-in. The displayed actual value can be frozen in the display by pressing the HOLD button. The measured minimum and maximum value can be displayed and stored in the meter. TopSafe cover protects the meter in the field from impact, dirt and splash water.
| Specifications | ||
| Product Type | Manometer | |
| Media compatibility | non-corrosive air and gases | |
| Unit of Measurement | psi, hPa, Pa, mBar, mm H2O, mm Hg, " H2O, " Hg | |
| Resolution | 0.4" H2O | |
| Range | ±29 psi | |
| Process connection | 1/4" barb | |
| Accuracy | ±1.2" H2O | |
| Power | two AAA batteries (included) | |
| Model | 0560 5129 | |
| Qty/ea | 1 | |
| Manufacturer number | 0560 5129 | |
| Brand | Testo | |
| Display | 2-line LCD | |
| Make | 512 | |
