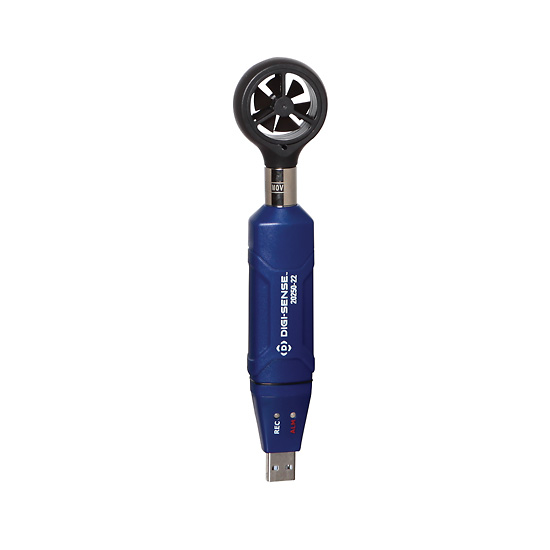

Digi-Sense Data Logging Vane Anemometer with NIST Traceable Calibration

Item# EJH-20250-22

- Versatile handheld or mountable design for quick air velocity sampling or long term monitoring
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- User-selectable units of measure eliminate the need for conversions
- Measure air velocities up to 3937 ft/min (20.0 m/s) to cover broad range of applications
- Analyze and graph logged data using included software
- User-defined high and low alarm levels with visual LED indication to bring attention to potential problems
- Articulated screw-on mounting stand provides flexible positioning to fit the application

The Digi-Sense data logging anemometer is designed for precision air velocity measurements in five user-selectable units (ft/min, m/s, mph, km/h, or knots). The instrument will help you meet cooling and environmental requirements for safety and comfort. A metallic mounting stand is included that provides an opportunity to position the anemometer to best fit the application. Built-in USB interface and included software allow logged data to be easily downloaded to a PC for analysis and graphing.
Digi-Sense comes pre-calibrated, saving you hundreds of dollars and extra waiting time to calibrate separately
What's Included:
data analysis software on CD, one 3.6 V replaceable battery, and NIST-traceable calibration report with data supplied by InnoCal.

Specifications
Product Type		Vane Anemometer
Range		0.4 to 20.00 m/s 1.4 to 72.0 km/hr 80 to 3937 ft/min 0.9 to 44.8 mph 0.8 to 38.8 knots
Units		m/s, km/hr, ft/min, mph, knots
Resolution		0.01 m/s 0.1 km/hr 1 ft/min 0.1 mph 0.1 knots
Accuracy		±(3% + 0.20 m/s) ±(3% + 1.0 km/hr) ±(3% + 40 ft/min) ±(3% + 0.4 mph) ±(3% + 0.4 knot)
Qty/ea		1
Brand		Digi-Sense
Display		Backlit LCD
Output		USB
Memory capacity		32,000 datapoints
Logging intervals		2 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 30 min, 1 hr, 2 hr, 3 hr, 6 hr, 12 hr, 24 hr
Data Logging		Yes
Dimensions		5-3/4" x 1-3/8" x 1-1/8" (14.5 x 3.5 x 3 cm)
