数字压力计EJH-68603-06    订购编号:EJH-68603-06

点击这里发送询价

请详细填写一下内容,包括产品原产国、品牌完整名称以及您所能得到的所有信息,这将有助于我们准确迅速的报价。非常感谢!

品牌厂商(Manutacturer)*

公司名称*

产品名称(Product Name)*

联系人*

产品型号(Product Type)*

联系地址*

产品序列号(ID-Nr;Artikel-Nr)

联系电话*

产品描述(Voltage,Amp,Kw,Rpm)

传真*

需求数量(Quantity demanded)

联系邮箱*

附加信息,更具体要求

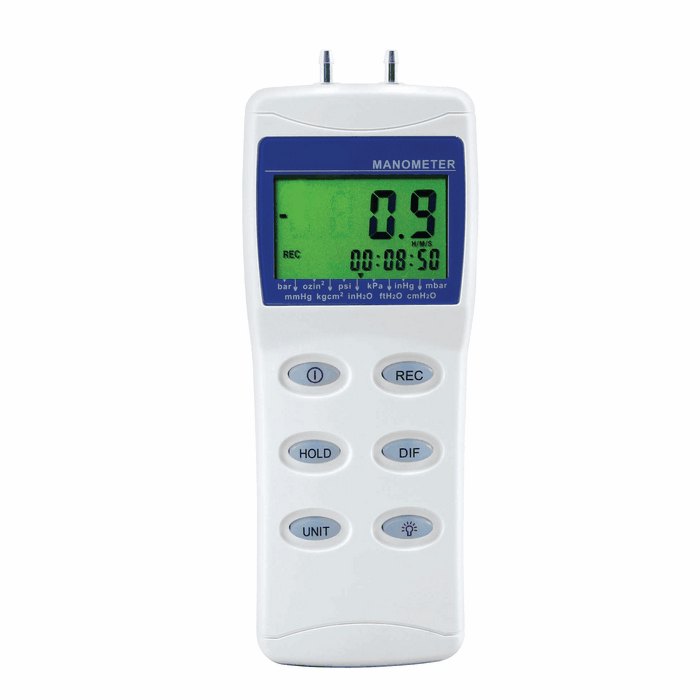

General Tool DM8200 Digital Manometer with range of 0 to 100 psi

Item# EJH-68603-06

    • Read gauge and differential pressure in 11 units of measure!
    • Ideal for measuring low differential pressure in clean rooms, test and balance, HVAC, pneumatic systems, and computer peripherals
    • Large backlight LCD, maximum, minimum, hold, and auto power off functions
    • Built-in RS-232 port downloads information to your PC
    • Order cable and software separately from Accessories below
These manometers are for use with noncorrosive gases and air only, not liquids.
What's Included:
connection hose, 9 V battery and hard shell carrying case.


Product Type Manometer
Media compatibility non-corrosive air and gases
Unit of Measurement psi, " H2O, kPa, ft H2O, " Hg, cm H2O, mbar, bar, mm Hg, oz inch2, kg cm2
Resolution 0.1 psi
Range 0 to 100 psi
Output RS-232
Max pressure (psi) 100
Process connection 3/16" barb
Accuracy ±0.3% full-scale
Power one 9 V battery (included)
Model DM8200
Qty/ea 1
Brand General Tool
Display 4-digit, 1/2"H LCD with backlight
Accessories

AC Power Adapter for Thermoanemometers and Manometers; 115 VAC
EJH-68603-20


Communication Cable for Digital Manometer w/ Backlight Display, RS-232
EJH-68603-22


Software for Digital Manometer with Backlight Display
EJH-68603-24


Calibrations

Innocal, NIST Calibration Service for Manometers

EJH-17090-31
