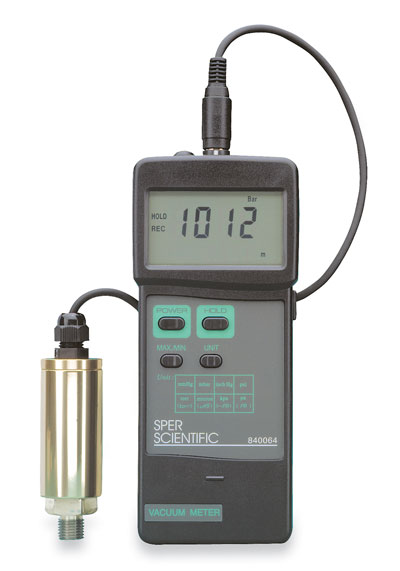

Portable Digital Vacuum Meter with 3 ft Cable and Transducer

Item# EJH-68604-00

• • Measure liquid, air, oil, and gas
  • Eight units of measure in easy-to-read display
  • Detachable heavy-duty probe
  • Auto shut-off
This cost-effective vacuum meter is ideal for vacuum measurement applications such as pneumatic, high heat, hydraulic, refrigeration, HVAC, and food processing. It features overload protection up to 2000 mbar max, built-in low battery indicator, and optional RS-232 serial interface and software for downloading data to a PC. Weighing less than one pound, meter records maximum and minimums with recall and a data hold function for storing desired value on display.

Specifications
Product Type		Vacuum Gauges/Controllers
Media compatibility		liquid, air, oil, gas
Unit of Measurement		mbar, psi, mm Hg, " Hg, kPa, Pa, torr, micron
Resolution		0.01 psi
Output		RS-232
Range		1 to 21.75 psi
Process connection		1/4" NPT(M)
Accuracy		±1% full-scale
Power		one 9 V battery (included)
Model		840064
Qty/ea		1
Brand		Sper Scientific
Display		4-digit LCD, 5/8" (1.6 cm) H

Accessories

Accessory RS-232 cable, cable rs232
EJH-68601-90


Graphing/Data Logging Software for 68604-00 Portable Vacuum Meter
EJH-68604-50


General Tools C17 Water-Resistant Meter Pouch
EJH-94461-25


Calibrations

InnoCal, NIST Calibration Service for Pressure/Vacuum Gauges, = 0.75%

EJH-17040-12
