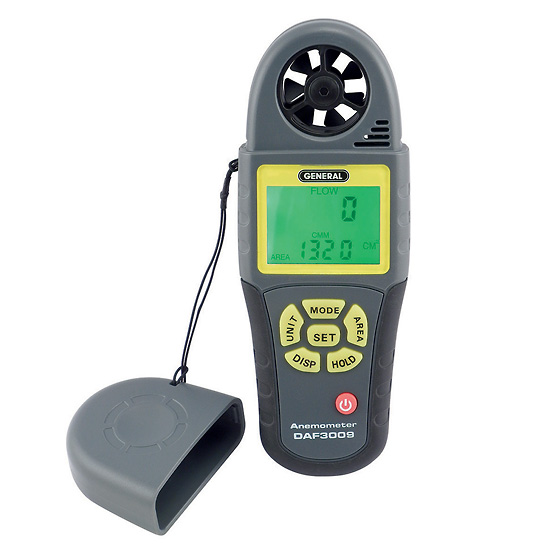

General Tools DAF3009 HVAC/R Anemometer-Psychrometer with CFM/CMM and Enthalpy
General Tools | Mfr# DAF3009 | Item# EJH-10001-14
Accessories
Batteries, 3 V, 6/pack (Eveready # CR2032)
EJH-09376-17
Availability
NIST-Traceable Calibration; Anemometers, Vane-Type
EJH-17101-01
-
- Install, test, and fine-tune your HVAC/R system
- Measure eight environmental conditions including airflow volume and enthalpy—ideal for HVAC technicians
- Track MIN/MAX/AVE air speed and airflow volume
- Back-lit LCD is easy to see in any lighting condition
-
Vane cap protects meter when not in use and is conveniently tethered to help prevent getting lost
- Enthalpy range: 8 to 318 Btu/lb (19 to 740 kJ/kg)
- Air velocity range: 80 to 5910 ft/min (0.4 to 30 m/s) with accuracy of ±3% of full-scale value + 40 ft/min (0.2 m/s)
Measures air speed (in ft/min, m/s, mph, km/hr, or knots), temperature in °F or °C, airflow volume in CFM or CMM, relative humidity, dew point and wet bulb temperatures, wind chill index, and enthalpy in Btu/lb or kJ/kg with this compact meter. See real-time measurements and track MIN/MAX/AVE session values for air speed and airflow volume. Take enthalpy measurements in ductwork to determine the efficiency of HVAC/R systems. This multi-function meter is small enough to fit in a pocket, and the tethered vane cap keeps it safe in a toolbox.
What's Included:
CR2032 battery (installed) and vane cap.
| Specifications | ||
| Product Type | Psychrometers | |
| Temp range | 32 to 122°F (0 to 50°C) | |
| RH range (min) | 0% | |
| RH range (Max) | 100% | |
| RH range | 0 to 100% | |
| Max temperature (º C) | 50 | |
| RH accuracy | ±3% from 20 to 80%; ±5% elsewhere | |
| RH resolution | 1% | |
| Min temperature (º F) | 32 | |
| Min temperature (º C) | 0 | |
| Max temperature (º F) | 122 | |
| Temp accuracy | ±1.8°F (1°C) from 68 to 104 °F (20 to 40°C); ±3.6°F (2°C) elsewhere | |
| Dew point resolution | 0.1° | |
| Temp resolution | 0.1°F (0.1°C) | |
| Dew point accuracy | Calculated from humidity and temperature measurements | |
| Dimensions | 2" x 7/8" x 5-7/8" (5.3 x 2.2 x 14.8 cm) | |
| Dew point range | -67 to 122°F (-35 to 50°C) | |
| Dewpoint | Yes | |
| Wet bulb | Yes | |
| CE Compliance | Yes | |
| Model | DAF3009 | |
| Qty/ea | 1 | |
| Manufacturer number | DAF3009 | |
| Brand | General Tools | |
| Display | Dual-line backlit LCD | |
| Power | One CR2032 battery (installed) | |
