气流速度液压计EJH-39007-18 订购编号: EJH-39007-18
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

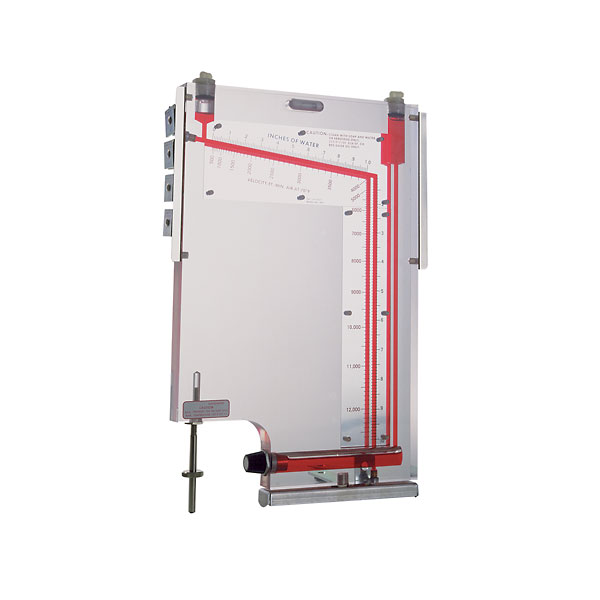

Dwyer 400-10-KIT, Air Velocity/Pressure Meter, 0-10"WC/400-12600 FPM, 18”
Read the red figures directly in fpm of velocity-from 400 to 10,000 fpm. No conversion tables needed for standard condition. Read the black figures in inches of water column. Air pressure-from 0 to 10" W.C.Our most popular precision air velocity instrument. This meter is used to balance air conditioning systems, measure pressure drop across filters and test fan and blower discharged and inlet pressures, as well as air velocity in ducts. It offers the convenience of a dual purpose instrument plus high accuracy on easy to read scales. A versatile, all around manometer for the air conditioning and balancing contractor or industrial plant.
Accessories Included
- Stainless steel calibrated pitot tube (18") - graduated both sides in inches to show insertion depth for easy, accurate duct traverse.
- Clean, burr-free static holes.
- Pitot tube suitable for temperatures up to 1500° F
- Rubber tubing with connectors - 2 coils of 3/16" with metal terminal tubes
- Magneclip side mountings - attaches meter instantly to steel duct or surface
- Red gauge oil - spare bottle for occasional refilling. Supply sufficient for several years of normal use.
- Instruction card - easy to read and understand, plastic laminated, easy to clean.
- Dwyer air velocity calculator - slide rule eliminates tedious calculations, easily compensates for temperature, humidity and barometric pressure variations.
- Steel carrying case - professional quality. Welded seams, enamel finish. Hinged top locks with hasps. Foam plastic lined and fitted to protect meter and accessories.
These item(s) cannot be shipped to residential addresses, sold to private individuals and is not available outside of the United States. These item(s) cannot ship freight collect and there may be additional shipping restrictions and/or charges for these items.| Specifications | ||
| Product Type | Air Velocity & Pressure Meters | |
| Range | 0 to 10.0" H2O | |
| Resolution | inclined section: 0.2, 0 to 2.3" H2O; vertical section: 0.20, 2.3-23" H2O | |
| Model | 400-10-KIT | |
| Qty/ea | 1 | |
| Manufacturer number | 400-10-KIT | |
| Brand | Dwyer | |
Calibrations
Innocal, NIST Calibration Service for Manometers
EJH-17090-31
Availability
Dwyer 400-10-KIT, Air Velocity/Pressure Meter, 0-10"WC/400-12600 FPM, 18” (Reconditioned)
EJH-00368CQ
