叶片风速计EJH-10323-15 订购编号: EJH-10323-15
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

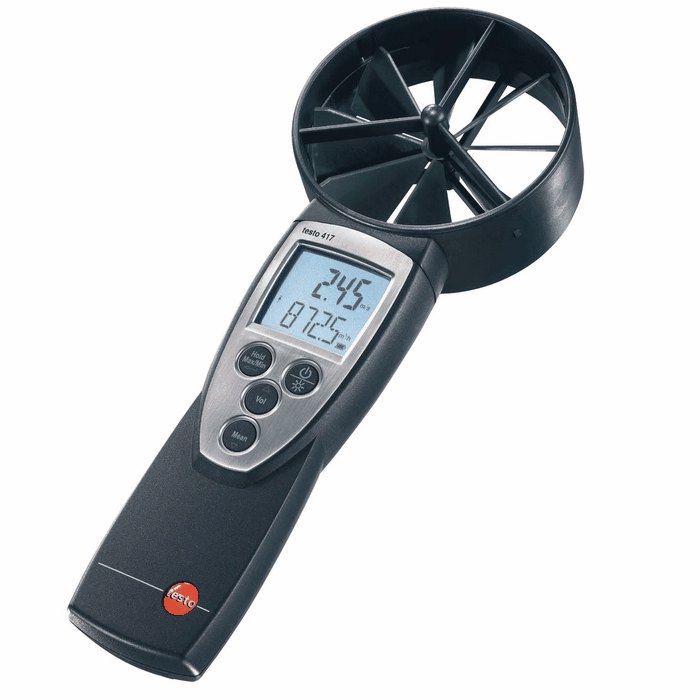

Testo 417 CFM Vane Anemometer, 4" vane for large areas
-
- Displays flow, volume (CFM), and temperature in English or metric units
- Identifies both flow and return
- Integral NTC sensor delivers accurate temperature measurements
This compact, easy-to-use vane anemometer provides both velocity (flow) and volume flow (cfm). A fixed, 100 mm vane takes flow measurements of large areas like vents, returns, registers, filters, and exhausts. Flow direction, such as inlet suction or exhaust pressure, is shown on the display. Volume flow measurements are simple—just enter the duct dimensions, either circular or rectangular, and the meter automatically calculates the volume flow (cfm) for you. This anemometer features both "timed mean" (mean value calculated over a user-specified time) and "multipoint mean" (mean value calculated over user-entered point measurements) to help track variable flows and cyclical events. Min. and max. values are displayed, plus a Hold function lets you freeze the display for data recording and documentation.
Whats included: one 9 V battery.
| Specifications | ||
| Product Type | Vane Anemometer | |
| Temp resolution | 0.1 C | |
| Temp range | 0 to 50 C | |
| Temp accuracy | ±0.5 C | |
| Model | 0560 4170 | |
| Qty/ea | 1 | |
| Manufacturer number | 0560 4170 | |
| Brand | Testo | |
| Air velocity range | 0.3 to 20 m/sec | |
| Air velocity resolution | 0.1 m/sec | |
| Air velocity accuracy | ±0.1 m/sec ±1.5% m.v. | |
| Battery life | 9 volt | |
| Dimensions | 4"W x 11H" x 1 3/4" D | |
