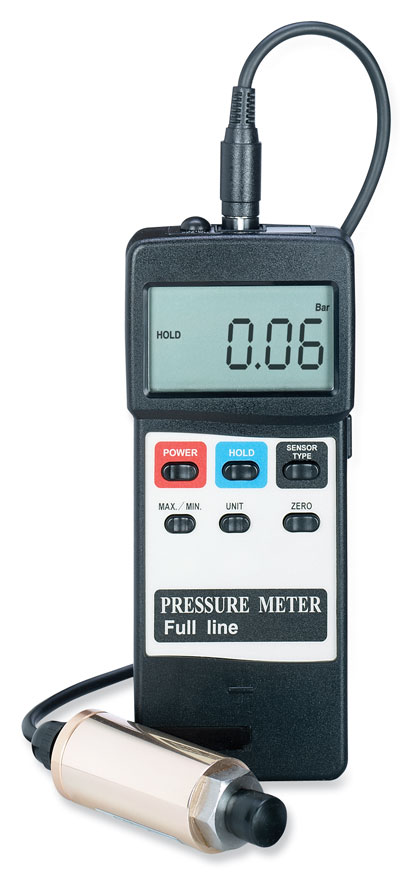

Pressure Meter for Interchangeable Transducers

- Cover a wide range of pressure readings with a single meter!
- Five interchangeable transducers provide excellent versatility
- Meter displays eight types of pressure units
- Excellent chemical resistance with 303 stainless steel transducers
- Easy push-button zero
  - Five interchangeable transducers provide excellent versatility
  - Meter displays eight types of pressure units
  - Excellent chemical resistance with 303 stainless steel transducers
  - Easy push-button zero

Specifications
Product Type		Pressure Transmitter
Media compatibility		liquids or gases
Unit of Measurement		bar, psi, kg/cm², mm Hg, " Hg, meter H₂O, " H₂O, atm
Resolution		Depends on transducer selected
Range		Depends on transducer selected
Output		RS-232
Process connection		1/4" PS NPT(M)
Battery life		Approximately 228 hours
Accuracy		±0.5% + 1 digit full-scale
Power		one 9 V battery (included)
Model		840065
Qty/ea		1
Brand		Sper Scientific
Display		dynamic 4-digit LCD, 5/8"H (1.6 cm)

Accessories

Interchangeable Transducer, 0 to 29.0 psi
EJH-68601-10

Interchangeable Transducer, 0 to 72.5 psi
EJH-68601-11

Interchangeable Transducer, 0 to 145 psi
EJH-68601-12

Interchangeable Transducer, 0 to 290 psi
EJH-68601-13

Interchangeable Transducer, 0 to 725 psi
EJH-68601-14

Accessory RS-232 cable, cable rs232
EJH-68601-90

Graphing/Data Logging Software for 68604-00 Portable Vacuum Meter
EJH-68604-50

InnoCal, NIST Calibration Service for Pressure/Vacuum Gauges, = 0.75%

EJH-17040-12
