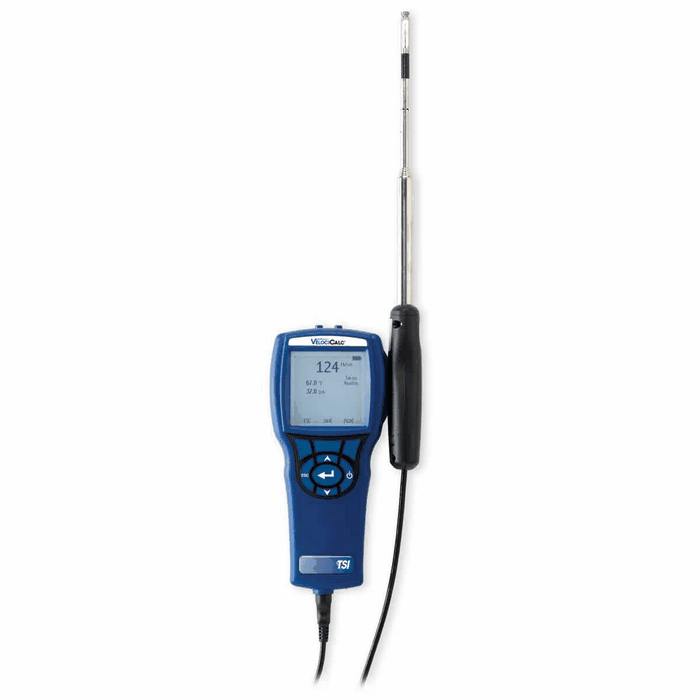

TSI 9565-P VelociCalc Ventilation Meter with differential pressure sensor

• • TSI's most advanced thermoanemometers
  • Bluetooth^® printer capability
  • Manual or continuous data logging
  • Displays up to 5 measurements simultaneously
  • Log up to 26,500 samples and 100 test IDs
  • Comes with NIST-traceable calibration report supplied by manufacturer
The TSI series of portable, handheld, multi-function ventilation test instruments—available with or without a differential pressure sensor—is designed to work with a wide range of plug-in probes. The probes allow you to make various measurements by simply plugging in a different probe that has the features and functions best suited for a particular application. They are designed to measure air velocity, temperature, humidity, CO and CO2. Probes feature a "SMART" plug-in connection that stores all the calibration data, so a new probe can be ordered at any time without the need of recalibrating the meter.

The meter can perform calculations for air flow, heat flow, turbulence, wet bulb and dew point temperature—then data can be downloaded to a PC or portable printer for analysis. Statistics function displays number of recorded samples, average, and Min/Max. Display automatically stabilizes while measuring in fluctuating flow applications. Backlit display allows easy viewing in low-lit areas.
Multi-Function Ventilation Meter with Pressure, and Dataloging (No probe included)

Specifications
Product Type		Hot-Wire Anemometer
Temp range		40 to 113°F (5 to 45°C)
Qty/ea		1
Manufacturer number		9565-P
Brand		TSI
Display		4-digit LCD
Logging intervals		1 second to 1 hour
Dimensions		Meter: 8-3/8"L x 4"W x 2"H (21.3 x 10.2 x 5.1 cm)
Power		4 AA batteries
Data storage		26,500+ samples and 100 test IDs

Accessories

Energizer Regular Alkaline AAA Batteries, 1.5 V, 12/pack
EJH-09376-00


TSI VelociCalc Air Velocity Probe, Straight, Velocity, Temp
EJH-10372-33


TSI VelociCalc Air Velocity Probe, Articulated, Velocity, Temp
EJH-10372-34


TSI VelociCalc Air Velocity Probe, Straight, Velocity, Temp., Humidity
EJH-10372-35


TSI VelociCalc Air Velocity Probe, Articulated, Velocity, Temp., Humidity
EJH-10372-36


TSI VelociCalc Rotating Vane Probe, 100 mm, Velocity, Temp.
EJH-10372-37


TSI VelociCalc IAQ Probe, CO2, Temp, Humidity
EJH-10372-38


TSI VelociCalc IAQ Probe, CO2, Temp, Humidity, CO
EJH-10372-39


TSI VelociCalc Surface Temperature Probe
EJH-10372-40


TSI VelociCalc Air Temperature Probe
EJH-10372-41

Availability
NIST-Traceable Calibration; Anemometers; Hot-Wire Type

EJH-17100-11
