加固的井型表安装压力计EJH-68500-49 订购编号:EJH-68500-49
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

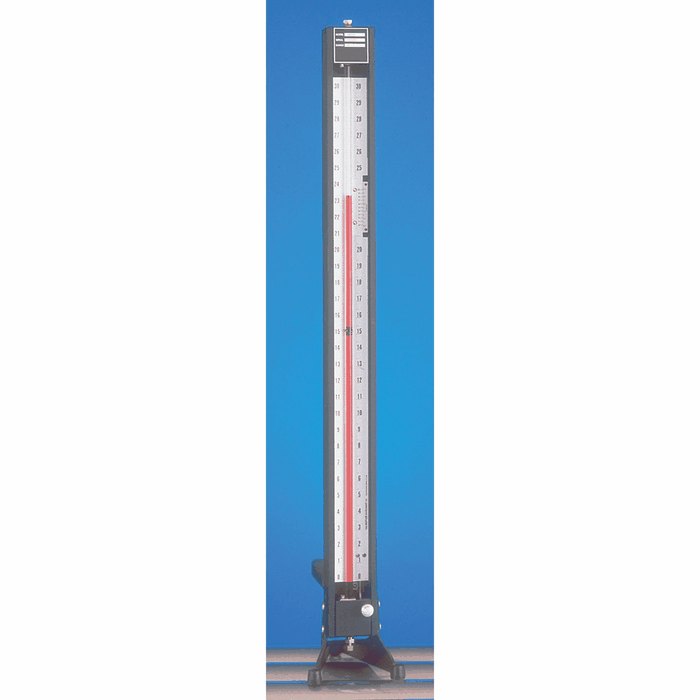

Meriam Ruggedized Well-Type Table-Mount Manometers, Scale F, 15.2 cm WC
-
- Accurate and dependable, as well as highly versatile
- Unit scale extends the full width of the instrument body and is graduated on each side of the indicating column
- Scale has a white, nonglare background with black graduations and figures
- Table- or wall-mount style
Well-type manometers provide fast, direct readings of pressure, vacuum, differential, flow and liquid levels. No adding of distances above and below a zero line. All scales are graduated
to correct for the drop in well level and are full width of the instrument.
Ranges: 6, 12, 20, 30, 40, and 60 inches
| Specifications | ||
| Product Type | Manometer | |
| Media compatibility | air and non-corrosive gases | |
| Range | 0 to 40" H2O | |
| Process connection | 1/4" NPT(F) | |
| Liquid fill | water | |
| Accuracy | ±0.5% of smallest graduation | |
| Model | 30EBX25-6-06-2 | |
| Qty/ea | 1 | |
| Manufacturer number | 30EBX25-6-06-2 | |
| Brand | Meriam | |
Innocal, NIST Calibration Service for Manometers
