5070 Micro-ohm Meter Calibrator 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
-
The 5070 DuctorCal is a portable instrument suitable for calibrating high current ductor testers and micro-ohm meters. It incorporates 5 sets of high current standard resistors that are used to enable precision calibration.
It has full 4 terminal capabilities with extra large terminals for the current connection. Gold plated terminals are used throughout to reduce contact resistance and thermal emfs. It has a substantial maximum continuous current rating, but can also be used with much higher transient/pulse test currents. The internal resistance standards are all high quality manganin types with good long term stability and temperature coefficients.

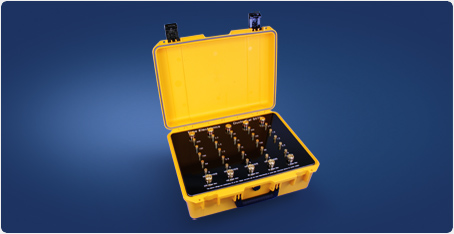

Rugged and portable, the 5070 is ideal for site calibration work, housed in a safety yellow field case with carry handle.
