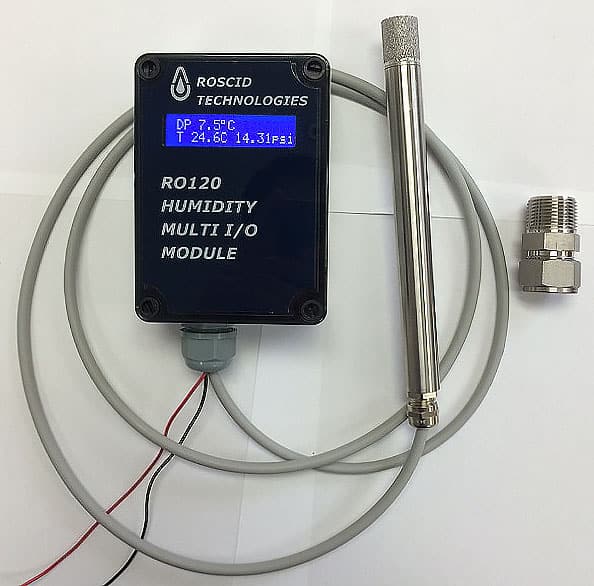

RO120 Precision Transmitter

The RO120 is a precision transmitter that provides quick and accurate humidity, barometric pressure, temperature, absolute pressure and dew point measurements in a wide range of applications. It has a wide temperature range of -40°C to 120°C and is resistant to most chemicals. This remote type transmitter comes standard with a 6 foot cable and is ideally suited for many different applications such as environmental chambers, compressed air, furnace and industrial applications. Roscid also offers a wall mount and duct mount configuration.

Specifications:

ACCURACY:
RH: ±1%
Temperature: ±0.5°C

OPERATING RANGE:
RH: 0-95% (non-condensing)

Temperature: -40°C to 120°C Wall-mount T-range 0C to +60C

Dew Point: -60°C to 95°C
Pressure rated: up to 700psia
Typical model (RO120-P: transducer to 200psi, the RO120-PS transducer reads up to 400psi

Barometric Pressure:
1100mB +/-5 mB

Model Type: Description:
RO120 A temperature / dew point / RH transmitter with three 0-10V outputs and a RS232 programmable output
RO120-B A temperature / barometric pressure / RH transmitter or dew point with three 0-10v outputs and a programmable RS232 programmable output
RO120-P A temperature / Pressure (psia) / dew point transmitter with 6-foot cable, three 0-10v outputs and a RS232 programmable output
RO120-PS A temperature / Pressure (psia) / dew point transmitter with 6-foot cable, three 0-10v outputs and a RS232 programmable output, pressure transducer readings to 400psi
RO120-DIS A temperature / dew point / RH transmitter with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output
RO120-B-DIS A temperature / barometric pressure / RH transmitter or dew point with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output
RO120-P-DIS A temperature / Pressure (psia) / dew point transmitter with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output, transducer reads up to 200psi
RO120-PS-DIS A temperature / Pressure (psia) / dew point transmitter with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output transducer reads up to 400psi
RO120-W-DIS A wall mount temperature / dew point / RH transmitter with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output
RO120-W-B-DIS A wall mount temperature / barometric pressure/RH transmitter with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output
RO120-D A duct mount configuration with dew point/ temperature / RH transmitter with 6-foot cable, three 0-10v outputs and a RS232 programmable output
RO120-D-B A duct mount configuration with temperature / barometric Pressure / RH transmitter or dew point with 6-foot cable, three 0-10v outputs and a RS232 programmable output
RO120-D-DIS A Duct mount temperature / dew point / RH transmitter with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output
RO120-D-B-DIS A duct mount temperature / barometric pressure/RH transmitter or dew point with a 2-line LCD display, three 4-20mA outputs, 2 programmable alarm relays and a RS232 programmable output
RO120-SC RO120 Sample Chamber
RO120-AB For RO120 probes only, an adapter board that the sensor plug into and the customer is allowed to hard wire to a terminal block

GENERAL:

Speed of Response: 12 Second response time that is T63, 0 to 90%

Storage temperature 150C

Cable length: 6 feet, for other lengths contact factory: (for remote and duct mount configurations only)

Probe length: 8in (20.3cm): (for remote and duct mount configurations only)

Probe Material: 316 stainless steel (for remote and duct mount configurations only)

Filter: Sintered filter top, removable (for remote and duct mount configurations only)

Sensor: Polymer-capacitive: for all configurations

Fitting: Adjustable ¾ NPT (for remote only)

Connections: Screw terminals Wire (20-24awg) standard wire required
