RO-PDM PORTABLE DEW POINT METER 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

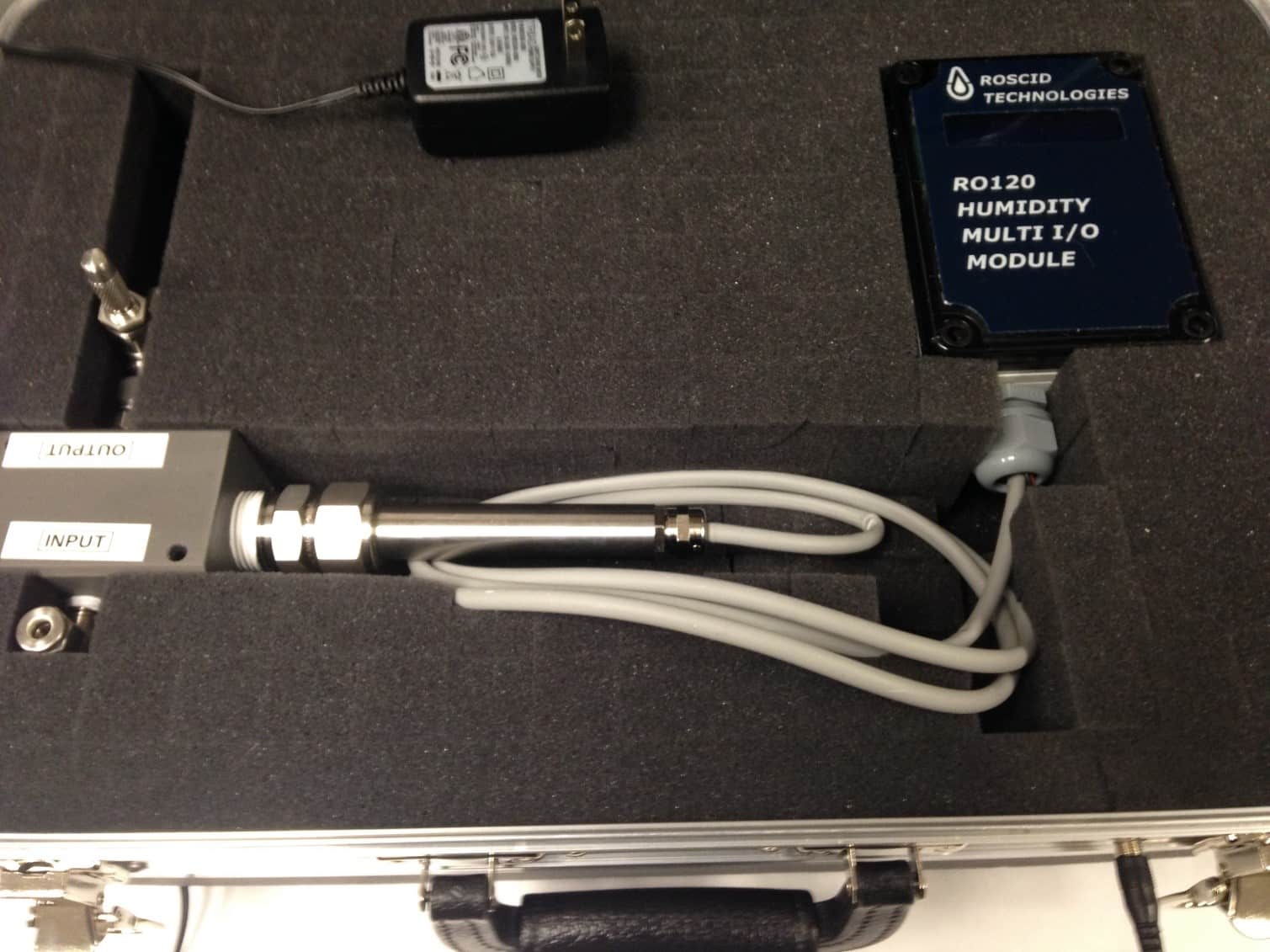

RO-PDM SERIES PORTABLE DEW POINT METER
The RO-PDM series is a precision portable dew point transmitter that provides quick and accurate humidity, dew point and temperature measurements for compressed air applications. It has a wide temperature range of -60°C to 20°C at 25C ambient temperature and is resistant to most chemicals. This portable unit has two configurations, either AC powered or battery powered. The unit has flexibility where the sensor can be removed from the sample chamber and inserted directly into the process if needed
The RO-PDM series is a precision portable dew point transmitter that provides quick and accurate humidity, dew point and temperature measurements for compressed air applications. It has a wide temperature range of -60°C to 20°C at 25C ambient temperature and is resistant to most chemicals. This portable unit has two configurations, either AC powered or battery powered. The unit has flexibility where the sensor can be removed from the sample chamber and inserted directly into the process if needed
Specification
Specifications:
ACCURACY:
Dew Point : +/-1.5C
Temperature: ±0.5°C
RANGE:
RH: 0-95% (non-condensing)
Temperature: -40°C to 120°C
Dew Point: -60°C to 95°C (for dew points above ambient condition consult factory)
PRESSURE RATED:
700PSI
GENERAL:
Speed of Response: 12 Second response time that is T63, 0 to 90%
Cable length: 6 feet, for other lengths contact factory:
Applications
Probe length: 8in (20.3cm): (for remote and duct mount configurations only)
Probe Material: 316 stainless steel)
Filter: protective filter top, removable)
Sensor: Polymer-capacitive: for all configurations
Fitting: Adjustable ¾ NPT (for remote only)
Connections: Screw terminals
Wire (20-24awg) standard wire required
