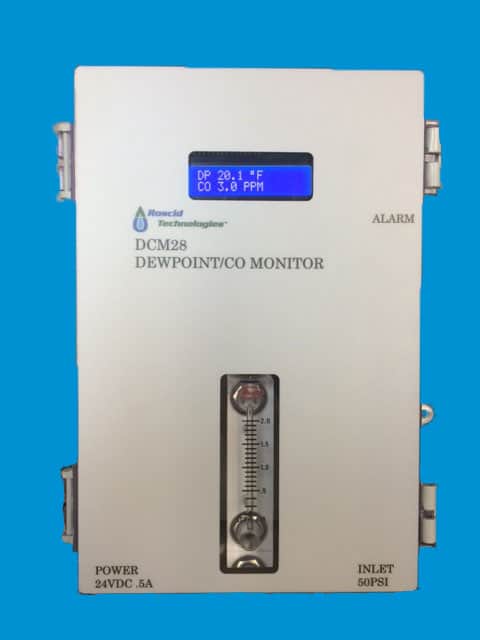

DCM 28
This medical gas analyzer is designed for fast, accurate and economic measurement of CO and Dew Point in medical air applications. A simple menu-driven software and LED-display allows easy and fast start-up of the instrument.

Specification of CO sensor

  • Measuring range : 0 – 50 ppm CO
  • Calibration : with calibration gas
  • Accuracy : +/- 2% of measuring
  • Resolution : 0,1 ppm
  • Response time : 90 % of FSD
  • at 25°C < 45 s
  • Operating
  • Temperature : 0 – 50°C
  • Sample pressure : 0,1 – 1 barg
  • Output signal : 4 -20 mA/DC
  • isolated
  • Alarm : 1 form B relay 3A 250V
  • Voltage : 24 VDC
  • Sensor : electrochemical sensor
  • Sensor warranty : 1 year from dispatch
  • Expected sensor life : minimum 2 years
