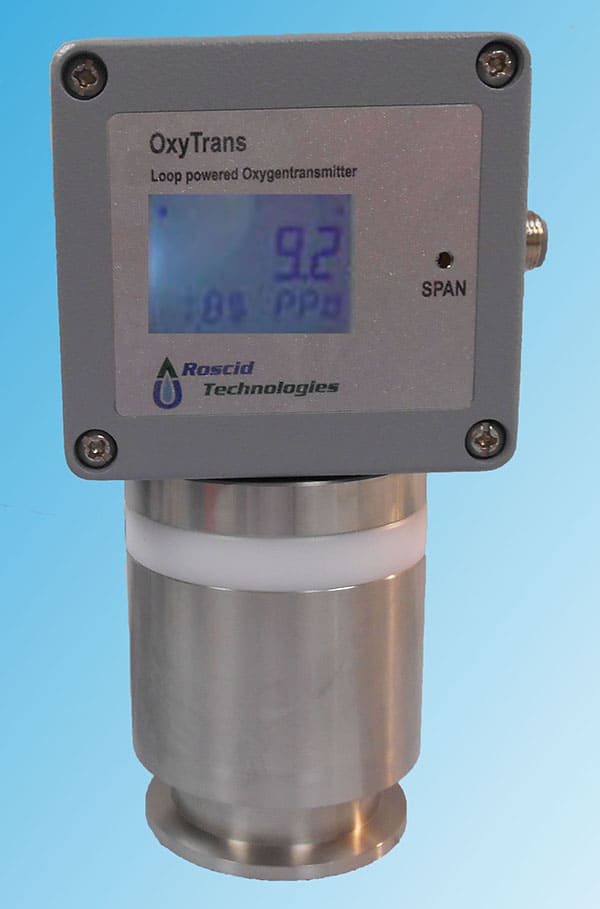

Oxygen Transmitter For Glovebox
The Model OxyTrans is simple, accurate and Economic measurement of Oxygen at trace and % levels. A simple Display and one point calibration allow easy and fast start-up of the instrument.

Specification

  • Measuring ranges

ppm: 0-10, 0 – 100; 0 – 1000;

: 0 – 10000 ppm O2

: 0 – 25; 0 – 100 % O2

  • Calibration: with calibration gas, air
  • Accuracy: +/- 2% FSD T= konst.

+/- 5% FSD  0>T>50°C

  • Resolution: 0,1 ppm < 0-100 ppm

1    ppm at 0- 1000, 0-10000 ppm

0.1 %

  • Response time: 90 % FSD  at 25°C

0-10     ppm < 45 s

0-100   ppm < 20 s

0-1000 ppm < 10 s

  • Operating Temperature: 0 – 50°C
  • Pressure: 0,1 – 1 bar
  • Signal output: 4 -20 mA/DC
  • Alarm value (if desired): 3,8 mA (Standard) or 23 mA
  • Voltage: 10 – 35 VDC

reverse voltage protection up to 40VDC

  • load: typ. 470 Ohm,

max. 750 Ohm

  • Display with bar graph: 6 Digits, alphanumeric
  • Oxygen sensor: Micro-Fuel Cell,

housing: IP65
