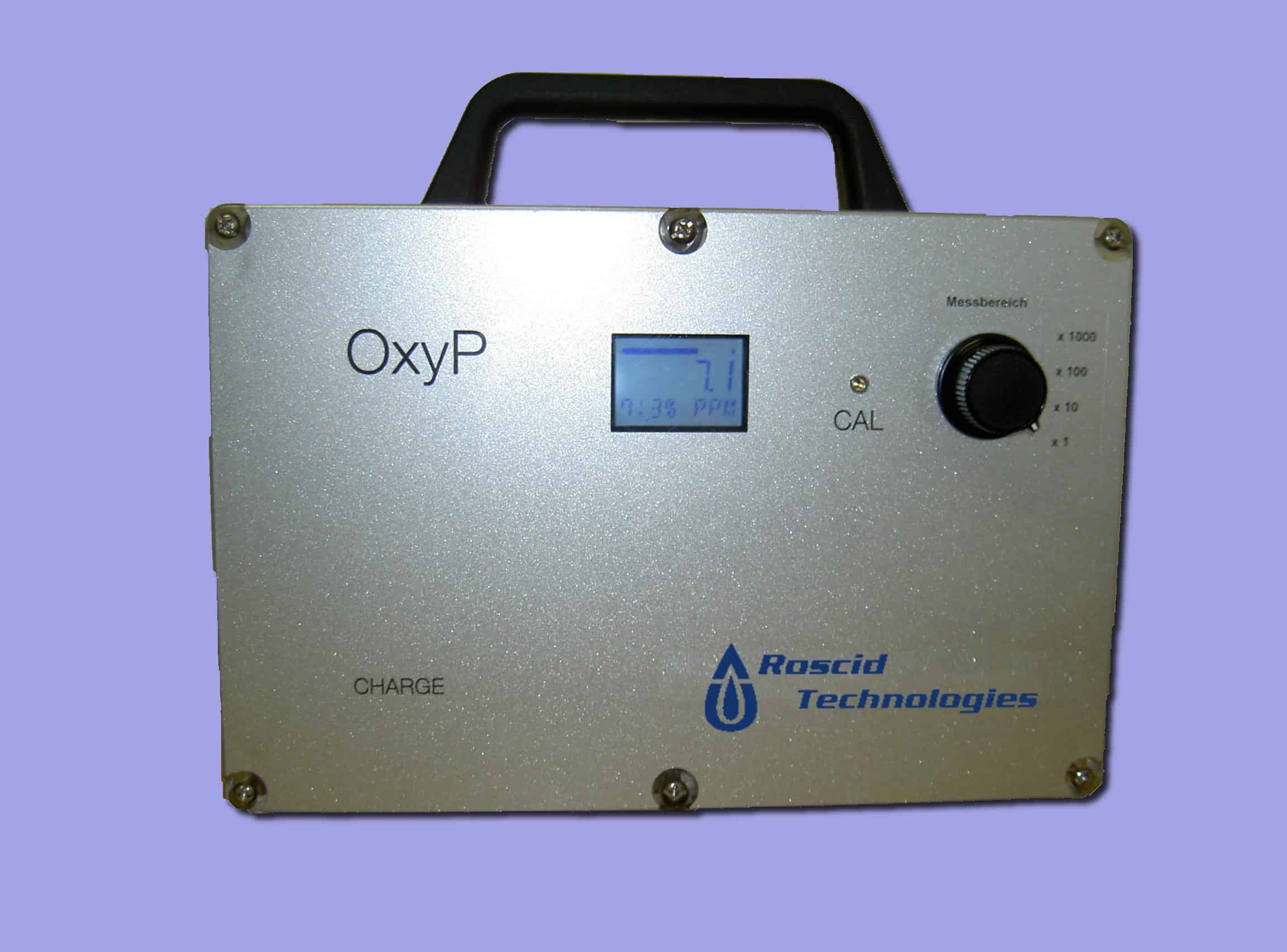

Portable Oxygen Transmitter
OxyP- This Model was made for fast, accurate and economic measurement of Oxygen at trace or percent levels. A simple operating and a large LCD-display allow easy and fast start-up of the instrument. The Unit is measuring Oxygen between 0 – 10000 ppm or 0 -25%.

Specification

  • Measuring range : 0 – 10000 ppm O2 or 0 -25 % O2
  • Calibration : with calibration gas or air
  • Accuracy : +/- 2% FSD ( T= const.) +/- 5% FSD over full temperature range ( bei 0 -10 ppm +/- 1ppm)
  • Resolution : 0,1 ppm or 0,1 % oxygen
  • Response time : 90 % of FSC at 25°C ,0-10 ppm < 45 s
  • Operating Temp. : 0 – 50°C
  • Pressure : 0,1 – 1 bar
  • Outputs : 4 -20 mA/DC
  • Display : backlight display
  • Power : 85 – 230 VAC, 44/60 Hz optional battery powered
  • Oxygensensor : Micro-Fuell Cell,
  • Sensor warranty : 6 month under normal use and maintenance
  • Expected sensor life : up to 2 years
  • Size : 13.78 x 11.81 x 3.94 in. ( W x H x D )
  • Weight : 1,55 lb.
