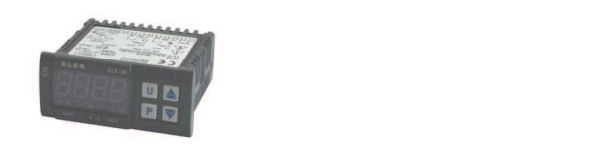

| ELK 38 S MICROPROCESSOR BASED REGULATORS SERIES |
 |
|
ELECTRICAL DATA - Power supply 12, 24 VAC/DC, 100..240 VAC +/-10% - Power consumption: 4 VA approx. - AC Frequency: 50 / 60 Hz INPUT DATA - 4 different configuration for programmable multi-input - Normalized signals input impedance OUTPUT DATA - Relay: Up to 2 outputs SPDT(8 A-AC1, 3 A-AC3 / 250 VAC) - Relay electric life: 100000 operations - Voltage for SSR driving - Auxiliary power supply output FUNCTIONAL DATA - see document attached MECHANICAL CHARACTERISTICS - Housing: Self-extinguishing plastic, UL 94 V0 - Dimensions: 33x75 mm - depth 64 mm - Weight: 180 g approx. - Connections: 2,5 mm 2 screw terminal block - Mounting: Flush in panel in 29x71 mm hole - Front panel protection: IP 65 mounted in panel with gasket |
| Technical data (PDF Format) |
| Models |
| ELK 38 S |
