气体流量压力仪表EJH-20250-13 订购编号:EJH-20250-13
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

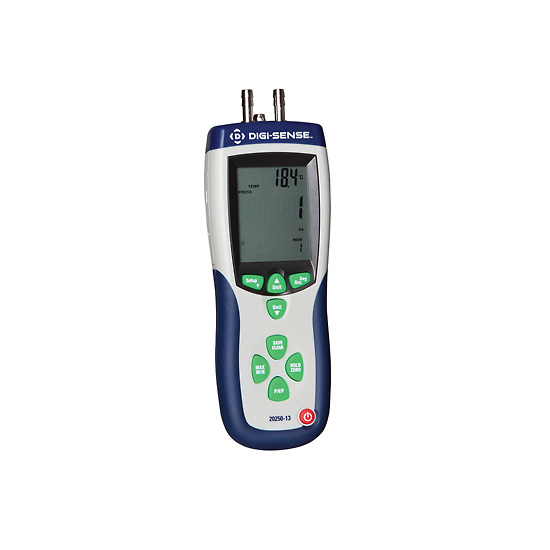

Digi-Sense Pressure and Flow Meter with NIST-Traceable Calibration
-
- Easily determine the performance of your heating and cooling systems
- Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
- Large, multiline backlit LCD
- Save and recall 99 sample readings per parameter
- Time clock on Max/Min/Avg provides time reference
The Digi-Sense pressure and flow meter is designed to measure differential and static pressure, and calculate air velocity and airflow in ductwork. Ideal for evaluating of duct performance and proper airflow, air filter monitoring, adjusting motor speeds in HVAC systems, and ensuring safe working conditions in buildings and schools. Plus the NIST-traceable precalibration means you get reliable measurements right out of the box, saving you time and money!
The meter is easily configured via the keypad operation. Max/Min and Hold functions allow you to control measurement readings. Upload performance data directly to your computer via the built-in USB interface. The included software allows you to view measurement data in graphical formats as well as record and download data to your PC for further analysis. Auto power-off mode after twenty minutes of nonuse extends battery life.
What's Included:
pitot tube, two rubber hoses for use with pitot tube, USB cable, software CD, ABS plastic carrying case, one 9 V battery, and NIST-traceable calibration report with data supplied by InnoCal.
| Specifications | ||
| Product Type | Manometer | |
| Media compatibility | Non-Corrosive Gases | |
| Unit of Measurement |
For Pressure: psi, mbar, in. H2O, mm H2O, Pa For Air Velocity: m/s, ft/min, km/hr, mph, knots For Airflow: cfm, cmm For Temperature: °C, °F |
|
| Resolution |
For Pressure: 0.01 mbar For Air Velocity: 1 ft/min For Airflow: 0.0001 cfm For Temperature: 0.1°F |
|
| Output | USB | |
| Range |
For Pressure: ±50 mbar (differential) or 0-50 mbar (static) For Air Velocity: 200 to 15,733 ft/min For Airflow: 0 to 99.999 cfm For Temperature: 32 to 122°F or 0 to 50°C |
|
| Max pressure (psi) | 0.7252 | |
| Pressure connection | 1/4" hosebarb | |
| Accuracy |
For Pressure: ±0.3% Full-Scale For Temperature: ±2.0°F or ±1.0°C |
|
| Power | One 9V battery (included) | |
| Qty/ea | 1 | |
| Brand | Digi-Sense | |
| CE Compliance | Yes | |
| Display | Backlit LCD | |
| Dimensions | 8" x 3" x 2" (20 x 7.5 x 5 cm) | |
Accessories
Digi-Sense Optional Tri-Pod Stand for Meters
EJH-20250-38
