温差式风速仪EJH-10379-96 订购编号:EJH-10379-96
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

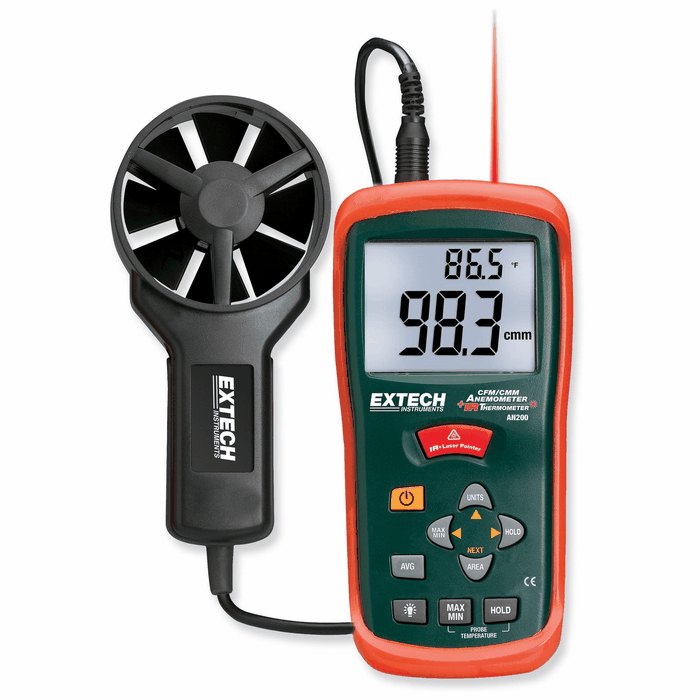

Extech EasyView CFM/CMM Vane Thermoanemometer with IR Thermometer, AN200
-
- Compact and rugged design featuring a large display
- View measurements in low light areas with backlit display
- Handheld air vane with 4-foot (1.2 m) cable length offers greater measurement flexibility
- Simultaneous display of ambient temperature and airflow or air velocity
- Up to 8 easy-to-set area dimensions (ft2 or cm2) are stored in the meter’s internal memory
-
20 point average function for airflow
- Model AN200 field of view—8:1 distance to spot ratio and laser pointer
These thermoanemometers are perfect for use in lab or plant maintenance applications, environmental analysis, fume hood testing, and HVAC applications. Each meter simultaneously displays air volume (CFM), air velocity and ambient temperature (°F or °C) on the large backlit display.
Additional features include: 20 point air flow averaging, Data Hold, Min/Max, and auto-power-off. User can select desired unit of measure for both temperature and air velocity.Model 10379-96 also includes a built-in infrared thermometer with laser pointer—adding the ability ot measure surface temperature from a safe distance.
What's Included:
Vane probe, hard carrying case, rubber boot, stand, and one 9 V battery.
| Specifications | ||
| Product Type | Vane Anemometers | |
| Temp resolution | 0.1°F (0.1°C) | |
| Volume range |
0 to 999,900 cfm (cfm = ft3/min) 0 to 999,900 cmm (cmm = m3/min) |
|
| Volume resolution |
1 cfm 1 cmm |
|
| Temp range | -14 to 140°F (-10 to 60°C) | |
| Temp accuracy | ||
| Qty/ea | 1 | |
| Manufacturer number | AN200 | |
| Temperature range (InfraRed) | -58 to 932°F (-50 to 500°C) | |
| Brand | Extech | |
| Temperature resolution (InfraRed) | 0.1°F (0.1° C) | |
| Temperature accuracy (InfraRed) | ±2% or ±4°F (2°C) | |
| Air velocity range |
0.40 to 30.00 m/s 1.4 to 108.0 km/h 80 to 5906 ft/min 0.9 to 67.2 mph 0.8 to 58.3 knots |
|
| Air velocity resolution |
0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knots |
|
| Air velocity accuracy |
±3% m/s ±3% km/h ±3% ft/min 3% mph ±3% knots |
|
| Display | 4-1/2 digit LCD, backlit | |
| Dimensions | 2-3/4" H x 6" W x 1-1/2" D (7.0 x 15.2 x 3.8 cm) | |
| Power | one 9V battery (included) | |
