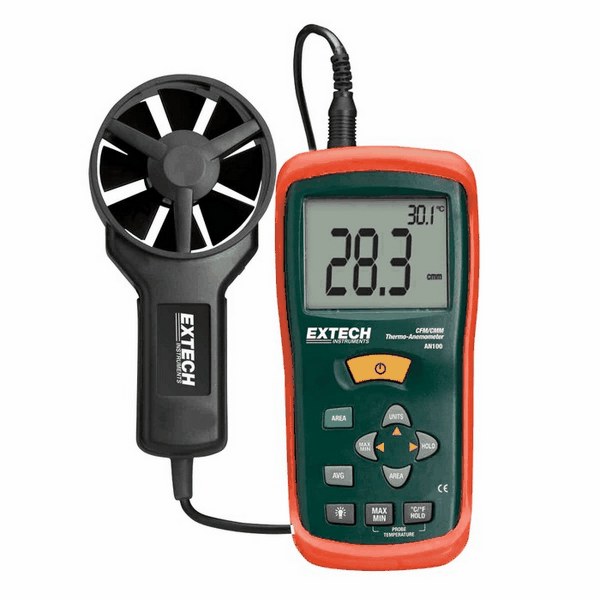

Extech EasyView CFM/CMM Vane Thermoanemometer, AN100
-
- Compact and rugged design featuring a large display
- View measurements in low light areas with backlit display
- Handheld air vane with 4-foot (1.2 m) cable length offers greater measurement flexibility
- Simultaneous display of ambient temperature and airflow or air velocity
- Up to 8 easy-to-set area dimensions (ft2 or cm2) are stored in the meter’s internal memory
- 20 point average function for airflow
These thermoanemometers are perfect for use in lab or plant maintenance applications, environmental analysis, fume hood testing, and HVAC applications. Each meter simultaneously displays air volume (CFM), air velocity and ambient temperature (°F or °C) on the large backlit display.
Additional features include: 20 point air flow averaging, Data Hold, Min/Max, and auto-power-off. User can select desired unit of measure for both temperature and air velocity.
What's Included:
Vane probe, hard carrying case, rubber boot, stand, and one 9 V battery.
| Specifications | ||
| Product Type | Vane Anemometers | |
| Temp resolution | 0.1°F (0.1°C) | |
| Volume range |
0 to 999,900 cfm (cfm = ft3/min) 0 to 999,900 cmm (cmm = m3/min) |
|
| Volume resolution |
1 cfm 1 cmm |
|
| Temp range | -14 to 140°F (-10 to 60°C) | |
| Temp accuracy | ||
| Qty/ea | 1 | |
| Manufacturer number | AN100 | |
| Temperature range (InfraRed) | -58 to 932°F (-50 to 500°C) | |
| Brand | Extech | |
| Temperature resolution (InfraRed) | 0.1°F (0.1° C) | |
| Temperature accuracy (InfraRed) | ±2% or ±4°F (2°C) | |
| Air velocity range |
0.40 to 30.00 m/s 1.4 to 108.0 km/h 80 to 5906 ft/min 0.9 to 67.2 mph 0.8 to 58.3 knots |
|
| Air velocity resolution |
0.01 m/s 0.1 km/h 1 ft/min 0.1 mph 0.1 knots |
|
| Air velocity accuracy |
±3% m/s ±3% km/h ±3% ft/min 3% mph ±3% knots |
|
| Display | 4-1/2 digit LCD, backlit | |
| Dimensions | 2-3/4" H x 6" W x 1-1/2" D (7.0 x 15.2 x 3.8 cm) | |
| Power | one 9V battery (included) | |
