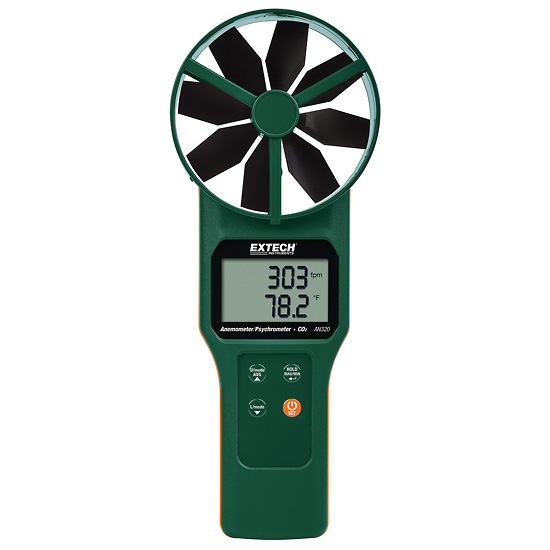

Extech AN320 Large Vane CFM/CMM Anemometer/Psychrometer and CO2

• • Large 4" (102 mm) vane for increased precision on large air ducts
  • Measures air velocity and airflow
  • Displays airflow and ambient temperature simultaneously
  • Contains built-in thermistor for accurate air temperature readings
  • Performs multipoint, point, and timed average calculations
  • Features Min/Max, data hold, and auto power capability
  • Optional cone and funnel adapter kit available
This family of anemometers features a large 4" (102 mm) diameter vane and dual LCD for ease and accuracy. All models measure and display airflow or air velocity and ambient temperature simultaneously. Model AN310 also provides humidity, wet bulb, and dew point readings. model AN320 additionally measures CO2.

Optional AN300-C airflow cone and funnel adapter kit provides a quick and easy means of airflow measurement for common duct sizes.
What's Included:
hard carrying case and four AAA batteries.

Specifications
Product Type		Airflow Humidity and CO2 Meter
Temp resolution		0.1°F/C
Volume range		0 to 99,999 ft3/min (m3/min)
Volume resolution		0.1 up to 9999.9, then 1.0
Carbon Dioxide range		0 to 9999 ppm (readings over 5000 are not specified)
Carbon Dioxide resolution		1 ppm
Carbon Dioxide accuracy		±(30 ppm + 5% of rdg) from 0 to 5000 ppm
Temp range		-4 to 140°F (-20 to 60°C)
Temp accuracy		±1.1°F from -5 to 122°F, ±2.2°F from 123 to 140°F (±0.6°C from -20 to 50°C, ±1.2°C from 51 to 60°C)
Model		AN320
Qty/ea		1
RH range		0.1 to 99.9% RH
RH resolution		0.1% RH
RH accuracy		±3% RH from 10 to 90% RH, ±5% RH below 10% RH and above 90% RH
Manufacturer number		AN320
Brand		Extech
Air velocity range		40 to 5900 ft/min (0.2 to 30 m/s)
Air velocity resolution		1 ft/min (0.01 m/s)
Air velocity accuracy		±1.5% rdg + 59 ft/min (±1.5% rdg + 0.3 m/s)
Display		Dual-function 4-digit LCD, 1/2" (13 mm)
Dimensions		10 5/8" x 4 1/4" x 2" (269 x 106 x 51 mm)
Dew point range		23 to 140°F (-5 to 60°C)
Wet bulb temp (Range)		-4 to 140°F (-20 to 60°C)
Power		Four AAA batteries

accessories

Energizer Regular Alkaline AAA Batteries, 1.5 V, 12/pack
EJH-09376-00


Extech AN300-C Airflow Cone and Funnel Adapters
EJH-10000-72


NIST-Traceable Calibration; Anemometers, Vane-Type

EJH-17101-01
