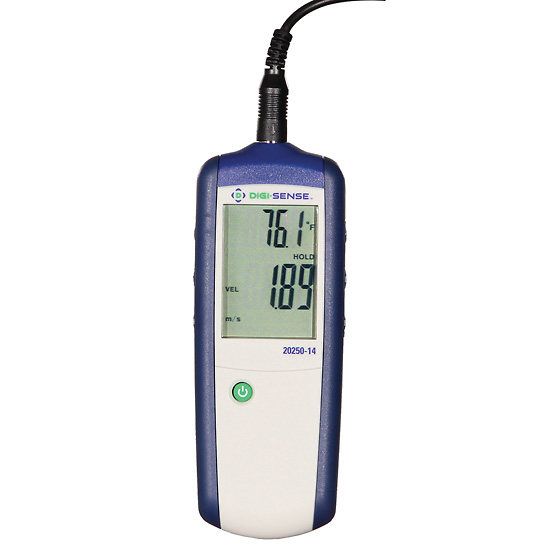

Digi-Sense CFM/CMM Vane Thermoanemometer with NIST Traceable Calibration



• • High precision with extra large backlit LCD and flow area data storage
  • Reliable measurements, guaranteed! Precalibrated to NIST-traceable standards.
  • User-selectable units of measure eliminate the need for conversion
  • Measure air velocities up to 5900 ft/min (30 m/s) to cover a broad range of applications
  • Measure air flow up to 999,900 CFM, 999,900 CMM
  • Two memory locations, one CFM and one CMM, store commonly used vent area sizes to save you time
  • Large dual-function 4-digit LCD with backlight for easy reading
  • Auto power-off extends battery life
  • Fits comfortably in your hand
The Digi-Sense CFM/CMM vane thermoanemometer is designed for precision air velocity and airflow measurements in seven user-selectable units of measurement (ft/min, m/s, mph, km/h, knots, CFM, and CMM). The instrument will help you meet cooling and environmental requirements for safety and comfort. The large dual display allows you to simultaneously read air velocity or airflow, and air temperature (°F/°C).
What's Included:
vane probe sensor with 3.9-ft (1.2-m) cable, three AAA batteries, and NIST-traceable calibration report with data supplied by InnoCal.

Specifications
Product Type		Vane Anemometers
Operating Modes		Min/Max/Ave, data hold
Range		Air velocity: 0.40 to 30 m/s 80 to 5900 ft/min 1.4 to 108.0 km/hr 0.9 to 67.0 mph 0.8 to 58.0 knots Air flow: 0 to 999,900 CFM 0 to 999,900 CMM Air temperature: 32 to 122°F 0 to 50°
Units		Air velocity: m/s, ft/min, km/hr, mph, knots Airflow: CFM, CMM Air temperature: °C or °F
Resolution		Air velocity: 0.01 m/s 1 ft/min 0.1 km/hr 0.1 mph 0.1 knots Air flow: 0.001 to 100 CFM 0.001 to 100 CMM Air temperature: 0.1°F 0.1°C
Accuracy		Air velocity: ±(3% + 0.20 m/s) ±(3% + 40 ft/min) ±(3% + 0.8 km/hr) ±(3% + 0.4 mph) ±(3% + 0.4 knots) Air temperature: ±4.0°F ±2.0°C
Qty/ea		1
Brand		Digi-Sense
Sampling time		1 reading per second
Display		Backlit LCD
Battery life		40 hours
Data Logging		No
Dimensions		Meter: 6-3/4" x 2-1/2" x 1" (16 x 6.2 x 2.1 cm) Vane sensor head: 2-3/4" (7 cm) diameter Cable length: 3.9 ft (1.2 m)
Power		Three AAA batteries
