热式风速仪EJH-30009-51 订购编号:EJH-30009-51

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

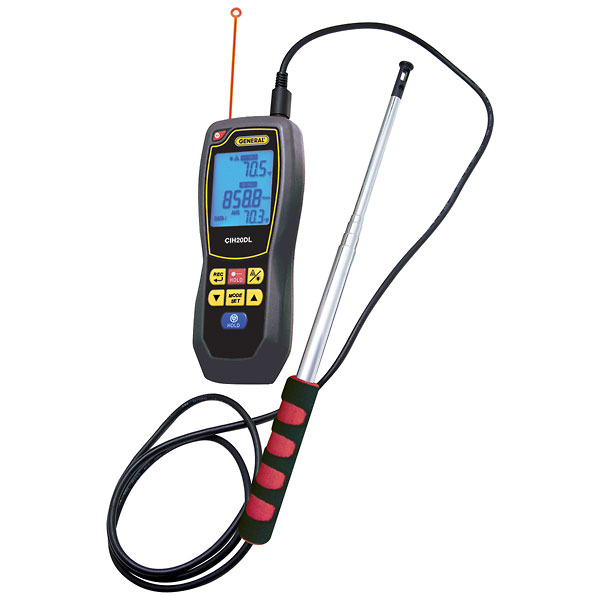

Data Logging Hot-Wire Anemometer with CFM/CMM and 8:1 IR Thermometer

- Versatility enhanced by wide airflow measurement range, ambient and infrared surface temperatures
- Measures air flow volumes up to 2.5 million CFM (72,000 CMM)
- Hot-wire sensor handles even the slightest 2 ft/min (0.6 m/min) air movement with ±3% accuracy
- Five available air speed units: ft/min, m/sec, mph, km/hr and knots
  - Features 8:1 distance to target ratio and 0.95 fixed emissivity

Specifications
Product Type		Hot-Wire Anemometer
Units		ft/min m/s mph km/h knots
Volume range		0 to 2,542,700 cfm 0 to 72,000 cmm
Volume resolution		0.01 cfm 0.001 cmm
Qty/ea		1
Manufacturer number		CIH20DL
Temperature range (InfraRed)		-25 to 999°F (-32 to 537°C)
Brand		General Tools
Temperature resolution (InfraRed)		0.1° F/° C
Temperature accuracy (InfraRed)		±5.4°F (±3°C)
InfraRed Temperature		Response Time: 0.5 seconds Distance-to-Target Ratio: 8:1 Emmisivity: 0.95 (Fixed)
Operating conditions		32 to 122°F (0 to 50°C) 10 to 90% RH
Air velocity range		2 to 7874 ft/min 20 mm/s to 40 m/s
Air velocity accuracy		±2%
Display		Large, dual backlit LCD
Memory capacity		Internal: 9 readings, Min/Max/Avg, data hold
Data Logging		20,000 data points via USB interface
Dimensions		7-1/4" L x 2-3/4" W x 1-9/16" H (18.4 x 7.0 x 4.0 cm)
Power		9 V battery or AC adapter
