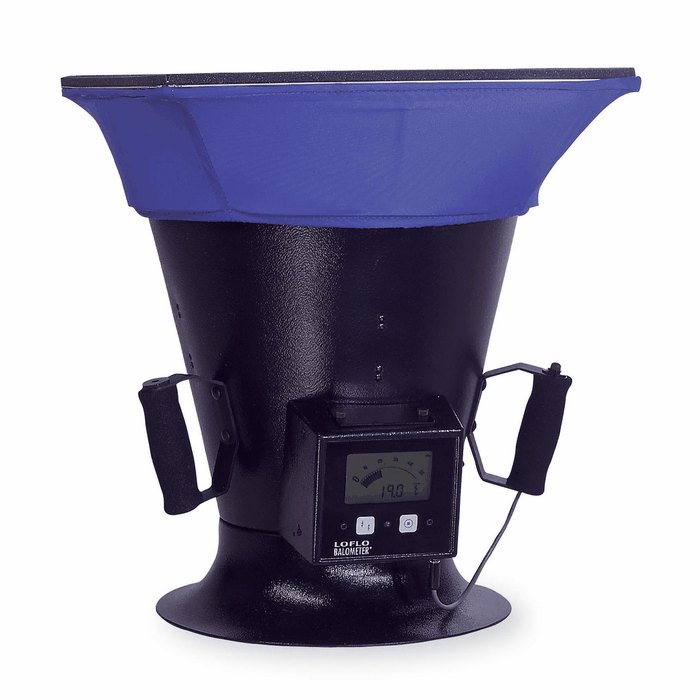

TSI (Alnor) 6200D Low Flow Balometer Capture Hood, 2 ft X 2 ft
-
- Analog bar graph monitors air trends simultaneously with a digital display
- Ideal for light commercial ventilation measurements
This digital balometer features a 24” x 24” hood opening to fit over standard-sized grilles and diffusers located on ceilings, walls or floors. The hood channels airflow through the base to directly measure air volume (CFM). Weighing less than six pounds, the balometer allows for single operator use and access into tight spaces.
Fast response LCD features an analog bar graph for monitoring airflow changes and displays digital readout. Measure air volume with or without hood connected to the balometer.
What’s included: NIST-traceable calibration certificate, and four C batteries.
| Specifications | ||
| Product Type | Balometer | |
| Range |
Supply and Exhaust: 10 to 500 ft3/min 17 to 850 m3/hr 4.7 to 236 L/s |
|
| Resolution |
Supply and Exhaust: 1 ft3/min 1 m3/hr 4 L/s |
|
| Accuracy |
Supply and Exhaust: ±3% of reading + (5 ft3/min, 8.5 m3/hr, 2.4 L/s) |
|
| Model | G200D | |
| Qty/ea | 1 | |
| Manufacturer number | 6200D | |
| Brand | Alnor | |
| Display | 3 1/2-digit, 0.44"H, 26 segment analog display | |
| Dimensions |
Base: 13" dia Total height: 34 1/2" |
|
| Power | four C batteries (included) | |
