显微镜平台空气隔离器EJH-11500-13 订购编号:EJH-11500-13
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

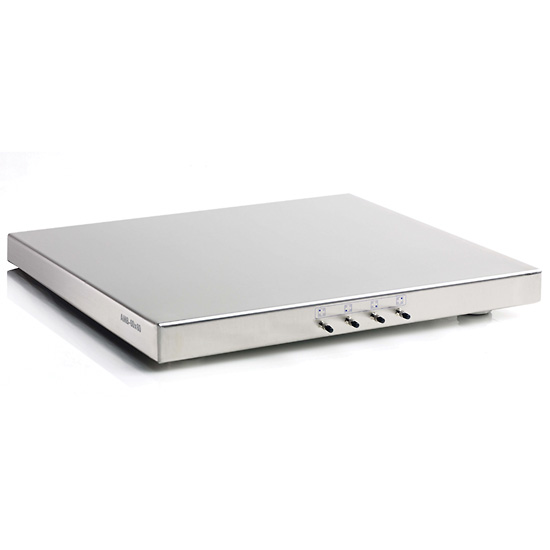

Speirs Robertson AMP Microscope Platform, Passive Air Isolators; 90x75cm
Speirs Robertson | Mfr# AMP-90X75-SS | Item# EJH-11500-13
-
- Maximize microscope image quality by reducing up to 99% of vibrations
- Isolates out vibration frequencies above 6 Hz—well below building vibration frequencies
- Eliminates surface vibrations with sound deadened construction
- Stainless steel worktop meets stringent cleanliness requirements
- Choice of passive air or active air isolators in a variety of platform sizes
Ideal for laboratory microscopes, including sensitive instruments such as laser confocal and spinning disk microscopes. Maintenance-free platforms are simply installed on a laboratory bench and the microscope placed on top.Passive air AMP models are filled with air by a pump and remain stable, perfect for routine work.
Isolators: four air-damped rolling diaphragms with 2 Hz natural frequency
Isolation performance: 97% at 50 Hz, 99% at 100 Hz
Working temperature: –4 to 320°F (–20 to 160°C)
| Specifications | ||
| Product Type | Antivibration Platform | |
| Capacity (kg) | 100 | |
| Capacity (lbs) | 220 | |
| Dimensions (" W) | 35-3/8 | |
| Dimensions (" H) | 2-1/2 | |
| Dimensions (" D) | 29-1/2 | |
| Platform dimensions | 90 x 75 x 6 cm | |
| Model | AMP-90x75 | |
| Qty/ea | 1 | |
| Brand | Speirs Robertson | |
| Manufacturer number | AMP-90X75-SS | |
