天平台EJH-11500-49 订购编号:EJH-11500-49
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

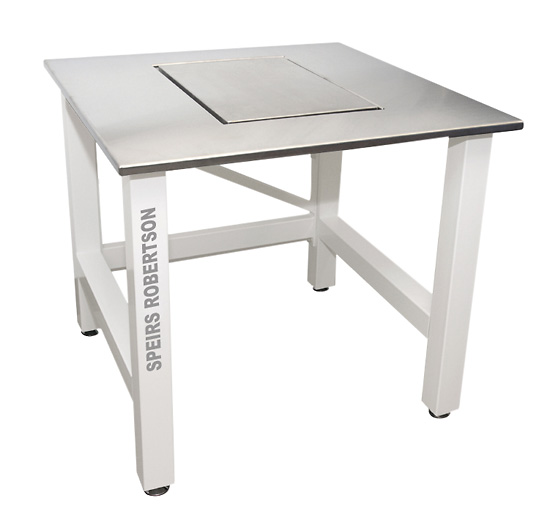

Speirs Robertson AMD-AS-90X75 Balance Table, 30 x 45cm Air Isolation Platform
Speirs Robertson | Mfr# AMD-AS-90x75 | Item# EJH-11500-49
Accessories
Speirs Robertson C03 Compressor for Air Platforms
EJH-11500-62
-
- Workstations support high-performance balances and peripheral instrumentation
- Built-in balance isolation area is flush with the surrounding work area, maximizing available space
- Removes up to 99% of vertical and horizontal vibrations caused by building-, sound-, and surface-generated frequencies
- Choose between the elastomeric or pneumatic isolation platform depending on the sensitivity of your balance
- Stainless steel worktop and epoxy powder-coated steel frame are durable and easy to clean
These worktables eliminate unwanted vibrations which limit the performance of sensitive instruments such as balances. Both series feature a sound-deadened isolation platform core and tubular steel frame with leveling feet. The isolation platform can be removed for cleaning, or switched with other platforms as necessary.
Pneumatic isolator AMD-AS models incorporate four rolling diaphragm damped isolators with natural frequency of 2 Hz—improving the reduction efficiency to 99% at 100 Hz. The isolators must be inflated with air by an external pump. Ideal for analytical balances.
Worktop material: stainless steel
Isolators: four 2 Hz natural frequency rolling diaphragm damped isolators
Isolation platform size: 11-13/16" x 17-23/32" (30 x 45 cm)
Isolation performance: 95% at 50 Hz, 98% at 100 Hz
Working temperature: –4 to 320°F (–20 to 160°C)
| Specifications | ||
| Product Type | Antivibration Platform | |
| Capacity (kg) | 100 | |
| Capacity (lbs) | 220 | |
| Dimensions (" W) | 35-3/8 | |
| Dimensions (" H) | 28-1/2 | |
| Dimensions (" D) | 29-1/2 | |
| Platform dimensions | 90 x 75 x 72.5 cm | |
| Model | AMD-AS-90x75 | |
| Qty/ea | 1 | |
| Brand | Speirs Robertson | |
| Manufacturer number | AMD-AS-90x75 | |
Accessories
Speirs Robertson C03 Compressor for Air Platforms
EJH-11500-62
