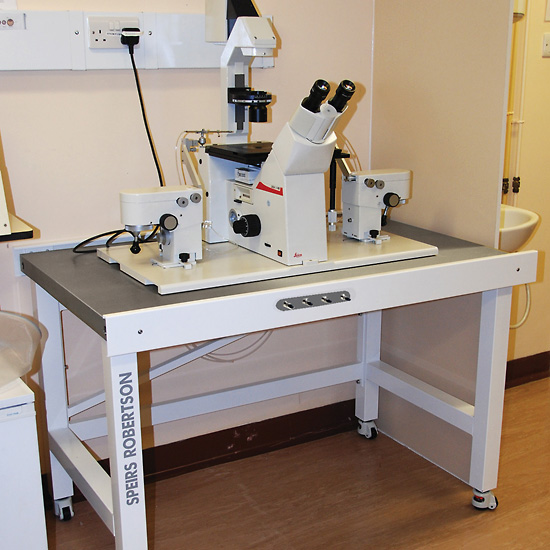

Speirs Robertson AMD-MP Microscope Table, Passive Air Isolators; 90x75cm



Speirs Robertson  |   Mfr# AMD-MP-90x75  |   Item# EJH-11500-37

    • Maximize microscope image quality by removing unwanted vibrations
    • Air-damped rolling diaphragm isolators reduce vibrations above 2 Hz by up to 99%, well below typical building vibration frequencies
    • Sound-deadened table construction reduces surface and sound vibrations
    • Table guard along the entire width protects platform from bumps
    • Stainless steel worktop and epoxy powder-coated steel frame are durable, chemical resistant, and easily cleaned
    • Leveling feet increase stability
    • Choose passive or active air models depending on your application
  • The passive air AMD-MP models are ideal for routine work with a single instrument. The diaphragm chambers are inflated by an external pump and remain stable.

    Isolators: four air-damped rolling diaphragms with 2 Hz natural frequency

    Isolation performance: 97% at 50 Hz, 99% at 100 Hz

    Worktop material: stainless steel

    Working temperature: –4 to 320°F (–20 to 160°C)


Product Type Antivibration Platform
Capacity (kg) 100
Capacity (lbs) 220
Dimensions (" W) 35-3/8
Dimensions (" H) 30-3/4
Dimensions (" D) 29-1/2
Platform dimensions 90 x 75 x 78c m
Model AMD-MP-90x75
Qty/ea 1
Brand Speirs Robertson
Manufacturer number AMD-MP-90x75
