Speirs Robertson | Mfr# AMD-MP-75x75 | Item#
EJH-11500-36
-
-

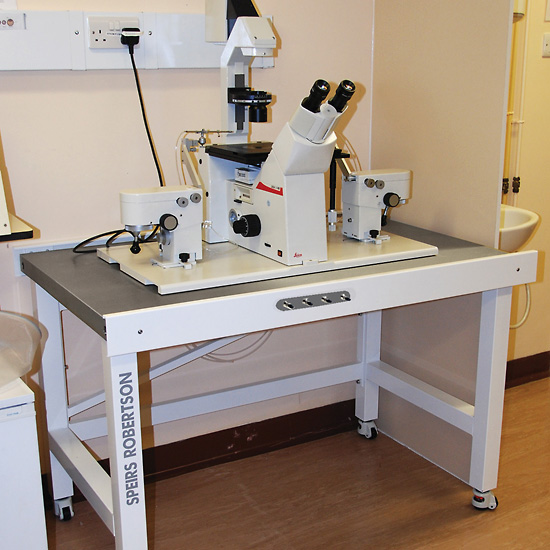

Maximize microscope image quality by removing unwanted vibrations
-
Air-damped rolling diaphragm isolators reduce vibrations above 2 Hz by up to 99%, well below typical building vibration frequencies
-
Sound-deadened table construction reduces surface and sound vibrations
-
Table guard along the entire width protects platform from bumps
-
Stainless steel worktop and epoxy powder-coated steel frame are durable, chemical resistant, and easily cleaned
-
Leveling feet increase stability
-
Choose passive or active air models depending on your application
The passive air AMD-MP models are ideal for routine work with a single instrument. The diaphragm chambers are inflated by an external pump and remain stable.
Isolators: four air-damped rolling diaphragms with 2 Hz natural frequency
Isolation performance: 97% at 50 Hz, 99% at 100 Hz
Worktop material: stainless steel
Working temperature: –4 to 320°F (–20 to 160°C)
Product Type |
Antivibration Platform |
Capacity (kg) |
100 |
Capacity (lbs) |
220 |
Dimensions (" W) |
29-1/2 |
Dimensions (" H) |
30-3/4 |
Dimensions (" D) |
29-1/2 |
Platform dimensions |
75 x 75 x 78 cm |
Model |
AMD-MP-75x75 |
Qty/ea |
1 |
Brand |
Speirs Robertson |
Manufacturer number |
AMD-MP-75x75 |
Accessories
Speirs Robertson F02 White Frame Shelf for 75x75cm Table
EJH-11500-57
Speirs Robertson F06 Antivibration Table Castor
EJH-11500-60
Speirs Robertson F09 Arm Rest Supports
EJH-11500-63
Speirs Robertson ALSC Clear Acrylic Draft Shield / Acoustic Hood 75x60x75cm
EJH-11500-64
