显微镜台 EJH-11500-16 订购编号: EJH-11500-16
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

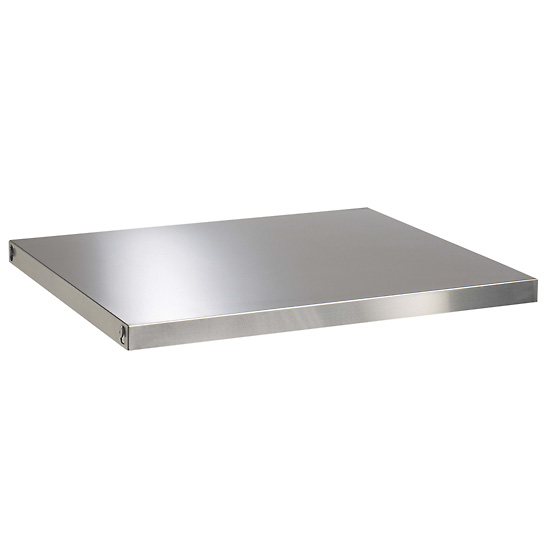

Speirs Robertson AMF Microscope Platform, Active Air Isolators; 90x75cm
Speirs Robertson | Mfr# AMF-90X75-SS | Item# EJH-11500-16
Accessories
Speirs Robertson C03 Compressor for Air Platforms
EJH-11500-62
-
- Maximize microscope image quality by reducing up to 99% of vibrations
- Isolates out vibration frequencies above 6 Hz—well below building vibration frequencies
- Eliminates surface vibrations with sound deadened construction
- Stainless steel worktop meets stringent cleanliness requirements
- Choice of passive air or active air isolators in a variety of platform sizes
Ideal for laboratory microscopes, including sensitive instruments such as laser confocal and spinning disk microscopes. Maintenance-free platforms are simply installed on a laboratory bench and the microscope placed on top.Active air AMF models are self-leveling and should be used where loads vary. They require a supply of clean dry compressed air of at least 5 bar (10 bar max) via a 6-mm OD airline.
Isolators: four air-damped rolling diaphragms with 2 Hz natural frequency
Isolation performance: 97% at 50 Hz, 99% at 100 Hz
Working temperature: –4 to 320°F (–20 to 160°C)
| Specifications | ||
| Product Type | Antivibration Platform | |
| Capacity (kg) | 100 | |
| Capacity (lbs) | 220 | |
| Dimensions (" W) | 35-3/8 | |
| Dimensions (" H) | 2-1/2 | |
| Dimensions (" D) | 29-1/2 | |
| Platform dimensions | 90 x 75 x 6 cm | |
| Model | AMF-90x75 | |
| Qty/ea | 1 | |
| Brand | Speirs Robertson | |
| Manufacturer number | AMF-90X75-SS | |
Accessories
Speirs Robertson C03 Compressor for Air Platforms
EJH-11500-62
