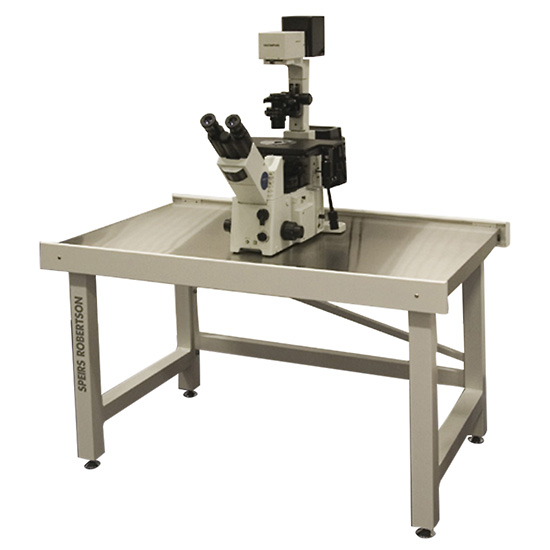

Speirs Robertson AMD-MF Microscope Table, Active Air Isolators; 75x75cm

Speirs Robertson  |   Mfr# AMD-MF-75x75  |   Item# EJH-11500-39

• • Maximize microscope image quality by removing unwanted vibrations
  • Air-damped rolling diaphragm isolators reduce vibrations above 2 Hz by up to 99%, well below typical building vibration frequencies
  • Sound-deadened table construction reduces surface and sound vibrations
  • Table guard along the entire width protects platform from bumps
  • Stainless steel worktop and epoxy powder-coated steel frame are durable, chemical resistant, and easily cleaned
  • Leveling feet increase stability
  • Choose passive or active air models depending on your application
The active air AMD-MF models are designed for variable loads. The self-leveling feature automatically adjusts to changes in equipment load.

Isolators: four air-damped rolling diaphragms with 2 Hz natural frequency

Isolation performance: 97% at 50 Hz, 99% at 100 Hz

Worktop material: stainless steel

Working temperature: –4 to 320°F (–20 to 160°C)

Specifications
Product Type		Antivibration Platform
Capacity (kg)		100
Capacity (lbs)		220
Dimensions (" W)		29-1/2
Dimensions (" H)		30-3/4
Dimensions (" D)		29-1/2
Platform dimensions		75 x 75 x 78 cm
Model		AMD-MF-75x75
Qty/ea		1
Brand		Speirs Robertson
Manufacturer number		AMD-MF-75x75
