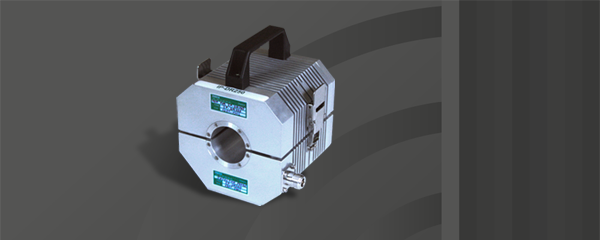

IP-DR250 :
500 W CW
- Descriptif
- Bulk Current Injection Probe
- Broadband (instantaneous single band) : 10 kHz – 400 MHz
- Typical power: 500 W CW
- Reliable, efficient and robust
- 3 years standard warranty
MAINTENANCE :
- Rapid diagnostic
- Minimal downtime
- Contract for preventive and corrective maintenance available
APPLICATIONS :
-
EMC standars covered:-DO 160 D
- Mil STD 461
- Automotive standards: PSA, Renault, Ford, Daimler Chrysler…
- ISO 11452-4
- SAE J1113-4
- …
- Spécifications

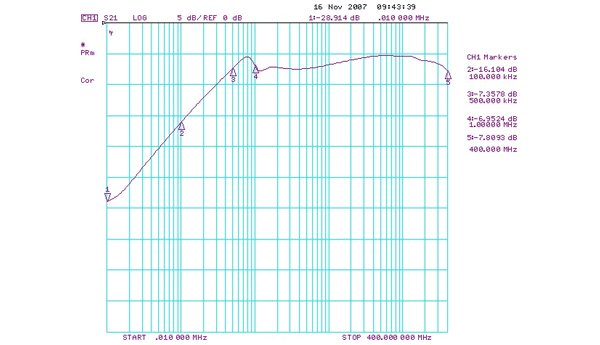

- Frequency Range : 0.01 - 400 MHz
- Window diameter : 43.8 mm
- Outside dimensions (h x w x d) : 120 mm x 126.5 mm x 125 mm
- RF input connector : Type "N" Female
- Weight : 5.3 kg
- Fastening : 2 Clips
- Maximum input Power : 500 W
- Input Power (with respect of core temperature = 80°C) : 150 W - 60 min / 300 W - 30 min / 500 W - 15 min
- Maximum temperature on the core surface (do not exceed this temperature) : 80 °C
- Options
Calibration JIG: CJ-DR250
