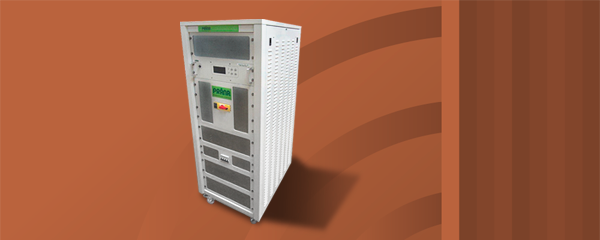

功率放大器 MT1400 80 MHz-1000 MHz/1400 W CW 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
MT 1400 :
80 MHz - 1000 MHz / 1400 W CW
- Descriptif
- Class A solid state
- Broadband (instantaneous single band): 80 MHz – 1000 MHz
- Typical output power : 1400 W CW
-
Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 1200 W and H < -20 dBc up to 450 MHz and
- P1dB > 900 W and H < -20 dBc from 450 MHz to 1000 MHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Upgradable to MT 1700 possible (38U)
- Reliable, efficient and robust
- 19" Cabinet on wheels
- 3 years standard warranty
VERSIONS :
-
MT 1400 DC amplifier with:
- Display
- Digital control
- IEEE 488 GPIB Communication
- Integrated bidirectional coupler
- display of instantaneous power
MAINTENANCE :
-
Amplifier designed for minimal maintenance
- Easy access to all parts
- Modular design
- Repairs with minimum adjustments
- Rapid diagnostic
- Minimal downtime
- Contract for preventive and corrective maintenance available
APPLICATIONS :
- EMC tests
- RF tests and instrumentation
- Radiocommunication
- Measurement and research laboratories
- Spécifications
- Frequency bandwidth : 80 MHz - 1000 MHz
- Typical output power : 1400 W
- Power at 3 dB compression : 1500 W min. up to 450 MHz / 1100 W min from 450 MHz to 1000 MHz
- Power at 1 dB compression : 1200 W min. up to 450 MHz / 900 W min from 450 MHz to 1000 MHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 60 dB
- Linear power gain flatness : ± 3.5 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type 7/16 fem. (front or rear panel) – other connector type on request
- Integrated bidirectional power coupler : Coupling factor 59 dB typ.
- Power coupling connector : Type N fem. (front or rear panel)
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Mismatch protection : Self limitation for reflected power > 600 W
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 480 l/sec max. (self contained fans)
- Mains voltage : 47-63 Hz, 3 phases (star or delta)
- Rated current : 9.7 kVA
- Dimensions : 840 x 600 x 1590 mm (30U) / 33.1 x 23.6 x 62.6 in (30U)
- Weight : 360 kg / 792 lb
- Options
- External coupler
- RF Power cable
- Switching unit
