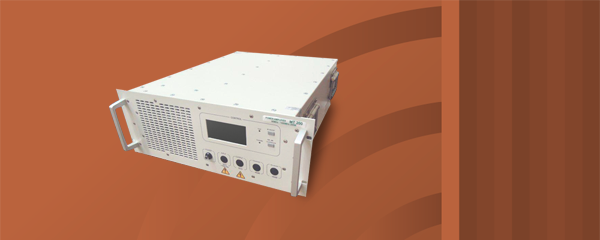

功率放大器MT200 80 MHz-1000 MHz/200 W CW 订购编号:

点击这里发送询价

请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！

品牌厂商（Manutacturer）*

公司名称*

产品名称（Product Name）*

联系人*

产品型号（Product Type）*

联系地址*

产品序列号（ID-Nr；Artikel-Nr）

联系电话*

产品描述（Voltage，Amp，Kw,Rpm）

传真*

需求数量（Quantity demanded）

联系邮箱*

附加信息，更具体要求

MT 200 :

Class A solid state
Broadband (instantaneous single band): 80 MHz – 1000 MHz
Typical output power : 200 W CW
Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:
- P1dB > 160 W and H < -20 dBc up to 450 MHz and
- P1dB > 110 W and H < -20 dBc from 450 MHz to 1000 MHz
Air cooling: self contained fans
Can operate in full mismatch conditions without damage
Upgradable to MT 400 possible (7U)
Reliable, efficient and robust
19" Rack
3 years standard warranty

VERSIONS :

MT 200 D amplifier with:
- Display
- Digital control
- IEEE 488 GPIB Communication

MT 200 DC : MT 200 D with :
- Integrated bidirectional coupler
- display of instantaneous power

MAINTENANCE :

Amplifier designed for minimal maintenance
- Easy access to all parts
- Modular design
- Repairs with minimum adjustments
Rapid diagnostic
Minimal downtime
Contract for preventive and corrective maintenance available

APPLICATIONS :

Frequency bandwidth : 80 MHz - 1000 MHz
Typical output power : 200 W

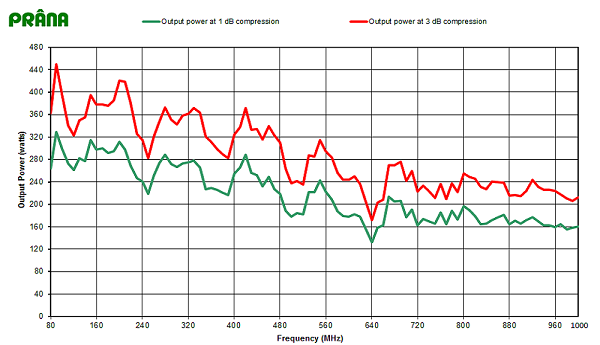

Power at 3 dB compression : 200 W min. up to 450 MHz / 150 W min. from 450 MHz to 1000 MHz
Power at 1 dB compression : 160 W min. up to 450 MHz / 110 W min. from 450 MHz to 1000 MHz
Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
Class type : Class A
Gain : 51 dB
Linear power gain flatness : ± 3 dB max
Mismatch tolerance : infinite without damage
Input impedance : 50 ohms / VSWR: 2:1max
Output impedance : 50 ohms / VSWR: 2:1max
Input power : +10 dBm max.
RF input connector : Type N fem. (front or rear panel) – other connector type on request
RF output connector : Type N fem. (front or rear panel) – other connector type on request
Ambient operating temperature : 0 °C / + 35 °C
Room temperature storage : -20 °C / +70 °C
Cooling : Forced air: 60 l/sec max. (self contained fans)
Power voltage : 90-250 VAC, 47-63 Hz, single phase
Rated current : 10.9 A at 110 VAC / 5 A at 230 VAC
Dimensions : 640 x 450 x 178 mm (4U) / 25.2 x 17.7 x 7 in (4U)
Weight : 34 kg / 75 lb

Safety interlock : Connector type BNC
Digital control : Transistors, power supplies and internal temperature
Communication interface : IEEE 488
4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)

Integrated bidirectional power coupler : Coupling factor 50 dB typ. (SC version) / 59 dB typ. (DC version)
Power coupling connector : Type N fem. (front or rear panel)
Estimated output power losses due to the coupler : 0.3 dB
