功率放大器 GN12000 100 kHz-200 MHz/12000 W CW 订购编号:
点击这里发送询价请详细填写一下内容，包括产品原产国、品牌完整名称以及您所能得到的所有信息，这将有助于我们准确迅速的报价。非常感谢！
GN 12000 :
100 kHz - 200 MHz / 12000 W CW
- Descriptif
- Class A solid state
- Broadband (instantaneous single band): 100 kHz – 200 MHz
- Frequency extension between 80 kHz to 250 MHz upon request (with limited specifications)
- Typical output power : 12000 W CW

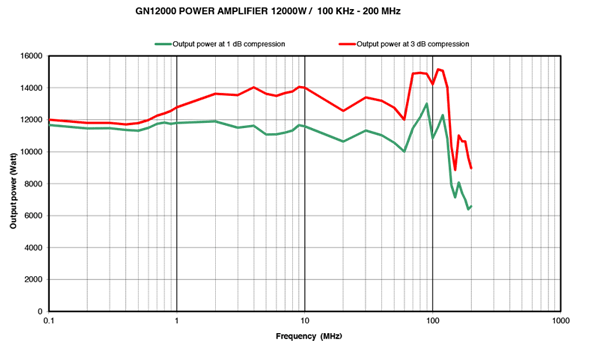

- Linear output power (1 dB compression) guaranted with harmonics <-20 dBc: P1dB > 10000 W and H<-20 dBc up to 100 MHz and P1dB > 5000 W and H<-20 dBc from 100 MHz to 200 MHz
- Air cooling: self contained fans
- Can operate in full mismatch conditions without damage
- Reliable, efficient and robust

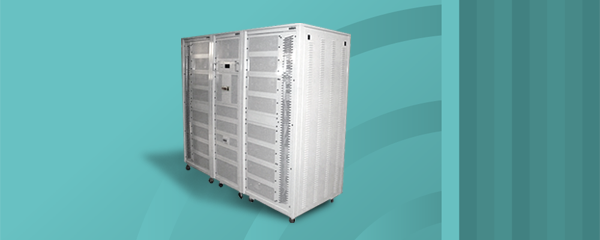

- 3 Cabinet on wheels
- 3 years standard warranty
VERSIONS :
-
GN 12000 DC amplifier with:
- Display
- Digital control
- IEEE 488 GPIB Communication
- Integrated bidirectional coupler
- display of instantaneous power
MAINTENANCE :
-
Amplifier designed for minimal maintenance
- Easy access to all parts
- Modular design
- Repairs with minimum adjustments
- Rapid diagnostic
- Minimal downtime
- Contract for preventive and corrective maintenance available
APPLICATIONS :
- EMC tests
- RF tests and instrumentation
- Radiocommunication
- Measurement and research laboratories
- Spécifications
- Frequency bandwidth : 100 kHz - 200 MHz (Frequency extension between 80 kHz to 250 MHz upon request)
- Typical output power : 12000 W
- Power at 3 dB compression : 11000 W min. up to 100 MHz / 7000 W min. from 100 MHz to 200 MHz
- Power at 1 dB compression : 10000 W min. up to 100 MHz / 5000 W min. from 100 MHz to 200 MHz
- Harmonics distortion : H2,H3 < -20 dBc for the output power at 1 dB compression limit
- Class type : Class A
- Gain : 68 dB
- Linear power gain flatness : ± 3 dB max
- Mismatch tolerance : infinite without damage
- Input impedance : 50 ohms / VSWR: 2:1max
- Output impedance : 50 ohms / VSWR: 2:1max
- Input power : +10 dBm max.
- RF input connector : Type N fem. (front or rear panel) – other connector type on request
- RF output connector : Type EIA 1-5/8 (rear panel)
- Power coupling connector : Type N fem. (front or rear panel)
- Integrated bidirectional power coupler : Coupling factor 69 dB typ.
- Safety interlock : Connector type BNC
- Digital control : Transistors, power supplies and internal temperature
- Mismatch protection : Self limitation for reflected power > 6000 W
- Communication interface : IEEE 488
- 4 lines digital display : Status, faults, (direct and reverse instantaneous power for DC version)
- Ambient operating temperature : 0 °C / + 35 °C
- Room temperature storage : -20 °C / +70 °C
- Cooling : Forced air: 3 x 960 l/sec max. (self contained fans)
- Mains voltage : 47-63 Hz, 3 phases (star or delta)
- Rated current : 51 kVA
- Dimensions : 2200 x 840 x 1950 mm (38U) / 86.6 x 33.1 x 76.8 in (38U)
- Weight : 3 x 450 kg / 3 x 992 lb
- Options
- External coupler
- Bulk Current Injection + Calibration JIG
- RF Power cable
- Switching unit
