CANtouch®
The CANtouch® sets with its functionality and the user-friendly interface, a new benchmark in the physical and logical analysis of CAN bus plants.
NEW: Symbolic decoding
Description
One device fits all requirements for CAN bus diagnosis.

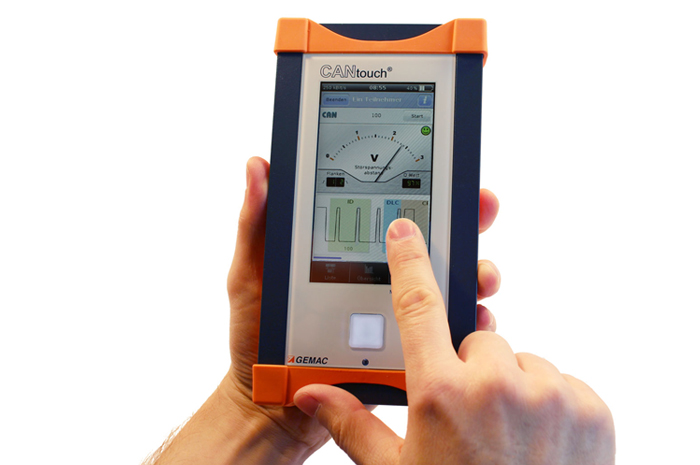

Comparable to a smartphone, the CANtouch has a managable size and intuitive touchscreen. Mobile and flexible use is possible due batterie power. See for yourself... Video
The CANtouch® is an universal diagnosis tool for the start up, analysis, monitoring, troubleshooting and service/maintenance of CAN bus systems:
- Latest measuring functions with easy and intuitive touchscreen operations
- Physical and logical analysis for determining the quality of the CAN networks
- Measuring of Common-Mode-Voltage
- Mobile and ready for use
- Connect - switch on - measure -without PC
- Simplified evaluation system using a combination of traffic lights and smileys
- By the developers of CAN-Bus Tester - market leader world-wide
-
NEW: Symbolic Decoding
- CAN Symbolic Editor
License Model - More individuality!

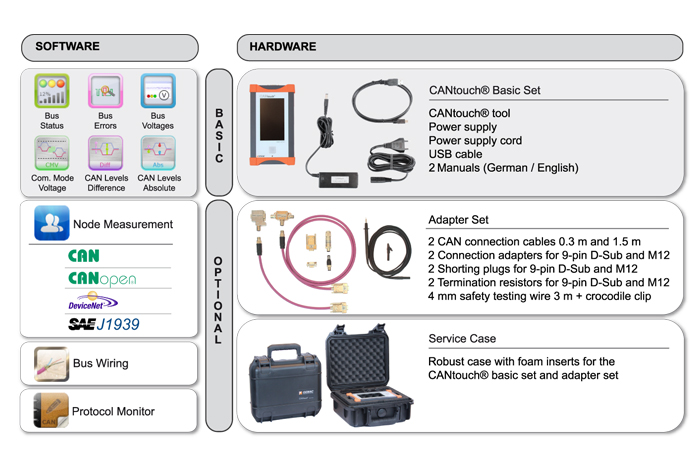

Accessories CANtouch®
Cable M12-CANopen/DeviceNet 2 m
Adapter D-Sub 9 - M12
M12 T-connector for CAN full metal
M12 T-connector for CAN
7/8“ T-connector for CAN
M12-Termination resistor
D-SUB 9 Termination resistor
M12-Plug connector shielded
M12-Plug connector
M12-Socket connector shielded
M12-connector
CAN-connecting cable 0.3 m
CAN-connecting cable 1.5 m Cable M12-CANopen/DeviceNet 2 m
Cable M12 CANopen/DeviceNet 2 m Cable M12 CANopen/DeviceNet 0,6 m Cable M12 CANopen/DeviceNet 5 m Cable M12 CANopen/DeviceNet 10 m
CANtouch.pdf 下载
