The loop-powered isolator DEH 11000 provides galvanic separation for 0(4) ... 20 mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy.
-
Galvanic isolation across input and output
Protection against erroneous measurements due to parasitic voltages or ground loops -
No power supply required
Saving costs since wiring is reduced and line influences are omitted -
Extremely slim design, 1- and 2-channel versions
Only 3.1 mm DIN-rail per channel -
Protective Separation acc. to EN61140
Protects service personnel and downstream devices against impermissibly high voltage -
Maximum reliability
No maintenance costs -
5 Years Warranty
Defects occurring within 5 years from delivery date shall be remedied free of charge at our plant (carriage and insurance paid by sender
The loop-powered isolator DEH 11000 provides galvanic separation for 0(4) ... 20 mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy.
The unit avoids interference voltage carry-over and effectively suppressing parasitic noise. The very low drop voltage of 2.3 V and the high level of accuracy work together to make the DEH 11000 the first choice in system design.
Intelligent design and their consequential avoidance of highly integrated components result in extremely long service lives and reliability - without any falsification of the measurement signal.
The DH 11000 requires no additional power supply since the auxiliary power is obtained from the input signal without distorting it. This not only saves costs during installation, but also increases reliability.
Input
| Input Signal | 0(4) to 20 mA |
| Operating current | < 200 µA |
| Voltage drop | Approx. 2.3 V at 20 mA |
| Overload | ≤ 50 mA, 30 V |
Output
| Output signal | 0(4) to 20 mA |
| Load | 600 Ohm |
| Cut-off frequency | 100 Hz |
| Response time T99 | 7 ms |
| Ripple | < 10 mVrms |
General Data
| Transmission error | < 0.1 % full scale | |
| Load error | < 0.05 % of measured value / 100 Ohm load | |
| Temperature coefficient 1) | < 100 ppm/K | |
| Test voltage | 3 kV AC, 50 Hz, 1 min. between all circuits | |
|
Working voltage 2) (Basic Insulation) |
Up to 600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1 between all circuits. | |
| Protection against electrical shock 2) | Protective separation according to EN 61140 by reinforced insulation in accordance with EN 61010-1 up to 300 V AC/DC for overvoltage category II and pollution degree 2 between all circuits. | |
| Ambient temperature |
Operation Transport and storage |
–25 °C to +70 °C (-13 to +158 °F) –40 °C to +85 °C (-40 to +185 °F) |
| EMC 3) | EN 61326-1 | |

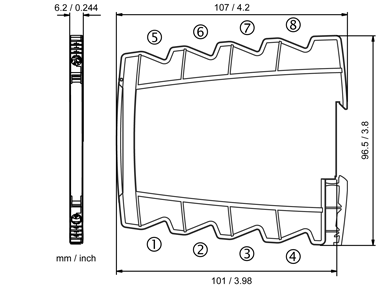

| Construction | 6.2 mm housing, protection class: IP 20, mounting on 35 mm DIN rail acc. to EN 60715 | |
| Weight | Approx. 70 g | |
- Average TC based on the final value in specified operating temperature range
- As far as relevant the standards and rules mentioned above are considered by development and production of our devices. In addition relevant assembly rules are to be considered by installation of our devices in other equipments. For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent situated devices.
- Minor deviations possible during interference
Connection
Captive plus-minus clamp screws
Wire cross-section max. 2.5 mm² / AWG 14
Stripped length 6 to 8 mm / 0.28 in
Screw terminal torque 0.8 Nm / 7 lbf in

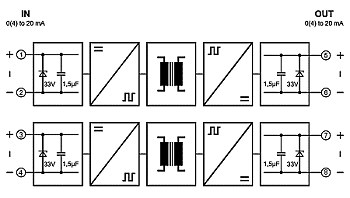

Terminal assignments
| 1 | + | Input I |
| 2 | - | Input I |
| 3 | + | Input II |
| 4 | - | Input II |
| 5 | + | Output I |
| 6 | - | Output I |
| 7 | + | Output II |
| 8 | - | Output II |
Product line
| Devices | Order No. |
| Loop-Powered Isolator, 1-channel | DEH 11010 S |
| Loop-Powered Isolator, 2-channel | DEH 11020 S |
